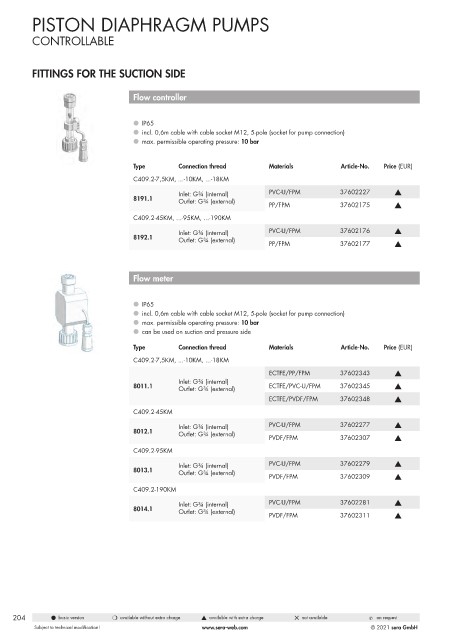

Page 204 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE SUCTION SIDE

Flow controller

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 10 bar

Type Connection thread Materials Article-No. Price (EUR)
C409.2-7,5KM, ...-10KM, ...-18KM
Inlet: G¾ (internal) PVC-U/FPM 37602227 s
8191.1 Outlet: G¾ (external) PP/FPM 37602175 s

C409.2-45KM, ...-95KM, ...-190KM

Inlet: G¾ (internal) PVC-U/FPM 37602176 s
8192.1 Outlet: G¾ (external) PP/FPM 37602177 s

Flow meter

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 10 bar
l can be used on suction and pressure side
Type Connection thread Materials Article-No. Price (EUR)
C409.2-7,5KM, ...-10KM, ...-18KM

ECTFE/PP/FPM 37602343 s
Inlet: G¾ (internal)
8011.1 Outlet: G¾ (external) ECTFE/PVC-U/FPM 37602345 s
ECTFE/PVDF/FPM 37602348 s
C409.2-45KM

Inlet: G¾ (internal) PVC-U/FPM 37602277 s
8012.1 Outlet: G¾ (external)
PVDF/FPM 37602307 s
C409.2-95KM

Inlet: G¾ (internal) PVC-U/FPM 37602279 s
8013.1 Outlet: G¾ (external)
PVDF/FPM 37602309 s
C409.2-190KM
Inlet: G¾ (internal) PVC-U/FPM 37602281 s
8014.1 Outlet: G¾ (external)
PVDF/FPM 37602311 s

204 l basic version m available without extra charge s available with extra charge 5 not available & on request
