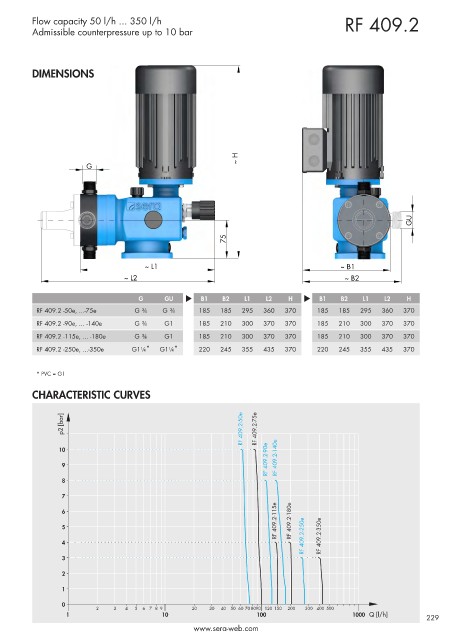

Flow capacity 50 l/h ... 350 l/h RF 409.2
Admissible counterpressure up to 10 bar

DIMENSIONS

~ H
G

GU

75

~ L1 ~ B1
~ L2 ~ B2

G GU s B1 B2 L1 L2 H s B1 B2 L1 L2 H
RF 409.2 -50e, ...-75e G ¾ G ¾ 185 185 295 360 370 185 185 295 360 370
RF 409.2 -90e, ... -140e G ¾ G1 185 210 300 370 370 185 210 300 370 370

RF 409.2 -115e, ... -180e G ¾ G1 185 210 300 370 370 185 210 300 370 370
RF 409.2 -250e, ...-350e G1¼ * G1¼ * 220 245 355 435 370 220 245 355 435 370

* PVC = G1

CHARACTERISTIC CURVES

p2 [bar] RF 409.2-50e RF 409.2-75e

RF 409.2-90e RF 409.2-140e
10
9
8

7
RF 409.2-115e RF 409.2-180e
6
5

4 RF 409.2-250e RF 409.2-350e
3

2
1

0
2 3 4 5 6 7 8 9 20 30 40 50 60 70 8090 120 150 200 300 400 500
1 10 100 1000 Q [l/h] 229
