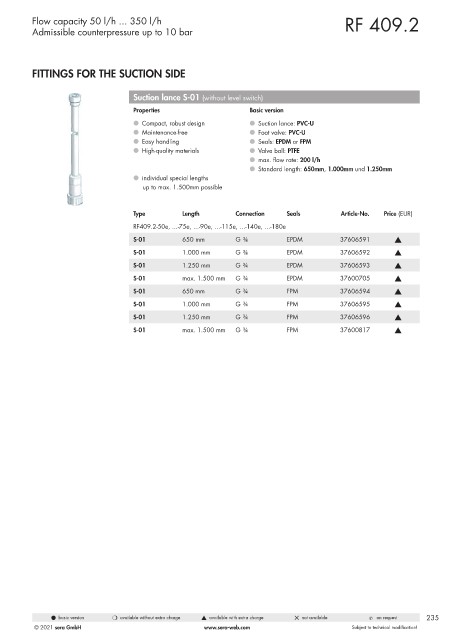

Page 235 - Pompy Dozujące 2021

Flow capacity 50 l/h ... 350 l/h RF 409.2
Admissible counterpressure up to 10 bar

FITTINGS FOR THE SUCTION SIDE

Suction lance S-01 (without level switch)
Properties Basic version

l Compact, robust design l Suction lance: PVC-U
l Maintenance-free l Foot valve: PVC-U
l Easy handling l Seals: EPDM or FPM
l High-quality materials l Valve ball: PTFE
l max. flow rate: 200 l/h
l Standard length: 650mm, 1.000mm und 1.250mm
l individual special lengths
up to max. 1.500mm possible

Type Length Connection Seals Article-No. Price (EUR)
RF409.2-50e, ...-75e, ...-90e, ...-115e, ...-140e, ...-180e

S-01 650 mm G ¾ EPDM 37606591 s
S-01 1.000 mm G ¾ EPDM 37606592 s
S-01 1.250 mm G ¾ EPDM 37606593 s
S-01 max. 1.500 mm G ¾ EPDM 37600705 s
S-01 650 mm G ¾ FPM 37606594 s
S-01 1.000 mm G ¾ FPM 37606595 s

S-01 1.250 mm G ¾ FPM 37606596 s
S-01 max. 1.500 mm G ¾ FPM 37600817 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 235
