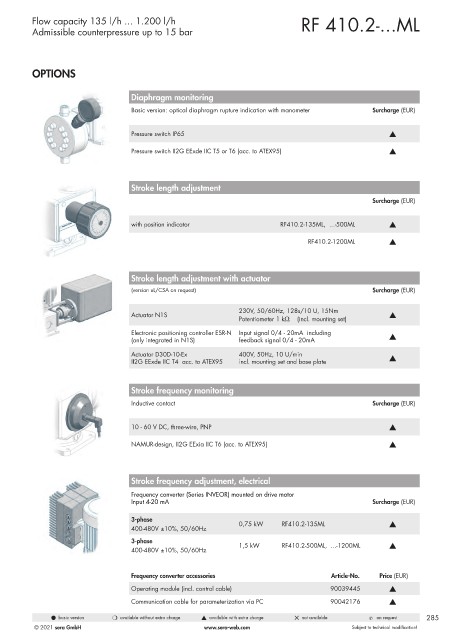

Page 285 - Pompy Dozujące 2021

Flow capacity 135 l/h ... 1.200 l/h RF 410.2-...ML
Admissible counterpressure up to 15 bar

OPTIONS

Diaphragm monitoring
Basic version: optical diaphragm rupture indication with manometer Surcharge (EUR)

Pressure switch IP65 s

Pressure switch II2G EExde IIC T5 or T6 (acc. to ATEX95) s

Stroke length adjustment
Surcharge (EUR)

with position indicator RF410.2-135ML, ...-500ML s

RF410.2-1200ML s

Stroke length adjustment with actuator
(version uL/CSA on request) Surcharge (EUR)

230V, 50/60Hz, 128s/10 U, 15Nm
Actuator N1S s
Potentiometer 1 kΩ (incl. mounting set)
Electronic positioning controller ESR-N Input signal 0/4 - 20mA including
(only integrated in N1S) feedback signal 0/4 - 20mA s

Actuator D30D-10-Ex 400V, 50Hz, 10 U/min
II2G EExde IIC T4 acc. to ATEX95 incl. mounting set and base plate s

Stroke frequency monitoring

Inductive contact Surcharge (EUR)

10 - 60 V DC, three-wire, PNP s
NAMUR-design, II2G EExia IIC T6 (acc. to ATEX95) s

Stroke frequency adjustment, electrical

Frequency converter (Series INVEOR) mounted on drive motor
Input 4-20 mA Surcharge (EUR)

3-phase 0,75 kW RF410.2-135ML s
400-480V ±10%, 50/60Hz
3-phase 1,5 kW RF410.2-500ML, ...-1200ML
400-480V ±10%, 50/60Hz s

Frequency converter accessories Article-No. Price (EUR)
Operating module (incl. control cable) 90039445 s
Communication cable for parameterization via PC 90042176 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 285
