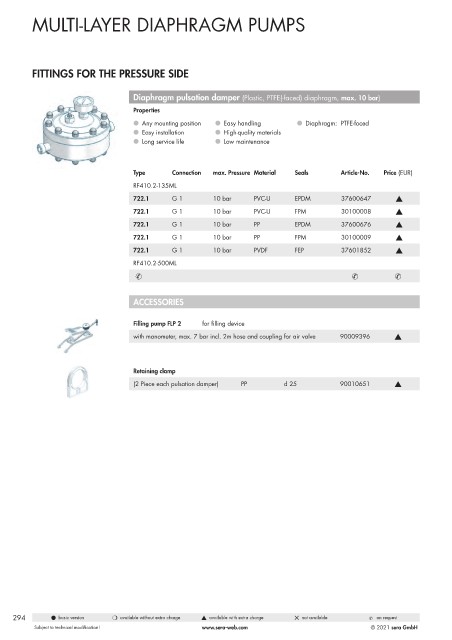

Page 294 - Pompy Dozujące 2021

MULTI-LAYER DIAPHRAGM PUMPS

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Plastic, PTFE(-faced) diaphragm, max. 10 bar)
Properties

l Any mounting position l Easy handling l Diaphragm: PTFE-faced
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max. Pressure Material Seals Article-No. Price (EUR)
RF410.2-135ML
722.1 G 1 10 bar PVC-U EPDM 37600647 s
722.1 G 1 10 bar PVC-U FPM 30100008 s
722.1 G 1 10 bar PP EPDM 37600676 s
722.1 G 1 10 bar PP FPM 30100009 s
722.1 G 1 10 bar PVDF FEP 37601852 s

RF410.2-500ML
& & &

ACCESSORIES

Filling pump FLP 2 for filling device

with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

Retaining clamp
(2 Piece each pulsation damper) PP d 25 90010651 s

294 l basic version m available without extra charge s available with extra charge 5 not available & on request
Subject to technical modification! www.sera-web.com © 2021 sera GmbH © 2021 sera GmbH www.sera-web.com Subject to technical modification!
