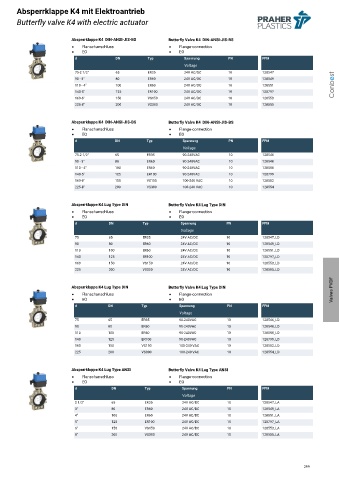

Absperrklappe K4 mit Elektroantrieb
Butterfly valve K4 with electric actuator

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN FPM
Voltage
1 75-2 1/2" 65 ER35 24V AC/DC 10 128547
1 90 - 3" 80 ER60 24V AC/DC 10 128549
1 110 - 4" 100 ER60 24V AC/DC 10 128551 Conbest
1 140-5" 125 ER100 24V AC/DC 10 128797
1 160-6" 150 VS150 24V AC/DC 10 128553
1 225-8" 200 VS300 24V AC/DC 10 128555

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN FPM
Voltage
1 75-2 1/2" 65 ER35 90-240VAC 10 128546
1 90 - 3" 80 ER60 90-240VAC 10 128548
1 110 - 4" 100 ER60 90-240VAC 10 128550
1 140-5" 125 ER100 90-240VAC 10 128799
1 160-6" 150 VS150 100-240 VAC 10 128552
1 225-8" 200 VS300 100-240 VAC 10 128554

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN FPM
Voltage
1 75 65 ER35 24V AC/DC 10 128547_LD
1 90 80 ER60 24V AC/DC 10 128549_LD
1 110 100 ER60 24V AC/DC 10 128551_LD
1 140 125 ER100 24V AC/DC 10 128797_LD
1 160 150 VS150 24V AC/DC 10 128553_LD
1 225 200 VS300 24V AC/DC 10 128555_LD
Valves PVDF
Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN FPM
Voltage
1 75 65 ER35 90-240VAC 10 128546_LD
1 90 80 ER60 90-240VAC 10 128548_LD
1 110 100 ER60 90-240VAC 10 128550_LD
1 140 125 ER100 90-240VAC 10 128799_LD
1 160 150 VS150 100-240 VAC 10 128552_LD
1 225 200 VS300 100-240 VAC 10 128554_LD

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN FPM
Voltage
1 2 1/2" 65 ER35 24V AC/DC 10 128547_LA
1 3" 80 ER60 24V AC/DC 10 128549_LA
1 4" 100 ER60 24V AC/DC 10 128551_LA
1 5" 125 ER100 24V AC/DC 10 128797_LA
1 6" 150 VS150 24V AC/DC 10 128553_LA
1 8" 200 VS300 24V AC/DC 10 128555_LA

299
