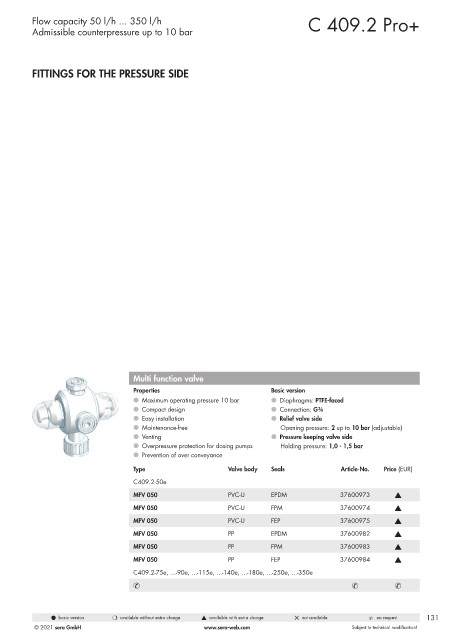

Page 131 - Pompy Dozujące 2021

Flow capacity 50 l/h ... 350 l/h C 409.2 Pro+
Admissible counterpressure up to 10 bar

FITTINGS FOR THE PRESSURE SIDE

Multi function valve

Properties Basic version
l Maximum operating pressure 10 bar l Diaphragms: PTFE-faced
l Compact design l Connection: G¾
l Easy installation l Relief valve side
l Maintenance-free Opening pressure: 2 up to 10 bar (adjustable)
l Venting l Pressure keeping valve side
l Overpressure protection for dosing pumps Holding pressure: 1,0 - 1,5 bar
l Prevention of over conveyance
Type Valve body Seals Article-No. Price (EUR)
C409.2-50e

MFV 050 PVC-U EPDM 37600973 s
MFV 050 PVC-U FPM 37600974 s
MFV 050 PVC-U FEP 37600975 s
MFV 050 PP EPDM 37600982 s
MFV 050 PP FPM 37600983 s
MFV 050 PP FEP 37600984 s
C409.2-75e, ...-90e, ...-115e, ...-140e, ...-180e, ...-250e, ...-350e

& & &

l basic version m available without extra charge s available with extra charge 5 not available & on request 131
