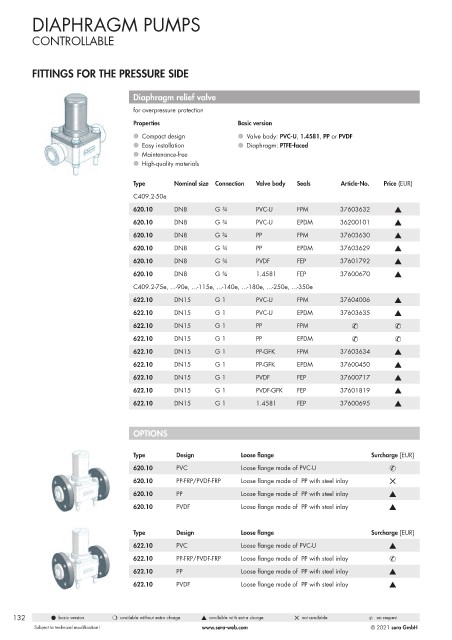

Page 132 - Pompy Dozujące 2021

DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm relief valve
for overpressure protection

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
C409.2-50e
620.10 DN8 G ¾ PVC-U FPM 37603632 s
620.10 DN8 G ¾ PVC-U EPDM 36200101 s
620.10 DN8 G ¾ PP FPM 37603630 s
620.10 DN8 G ¾ PP EPDM 37603629 s
620.10 DN8 G ¾ PVDF FEP 37601792 s
620.10 DN8 G ¾ 1.4581 FEP 37600670 s
C409.2-75e, ...-90e, ...-115e, ...-140e, ...-180e, ...-250e, ...-350e

622.10 DN15 G 1 PVC-U FPM 37604006 s
622.10 DN15 G 1 PVC-U EPDM 37603635 s
622.10 DN15 G 1 PP FPM & &
622.10 DN15 G 1 PP EPDM & &
622.10 DN15 G 1 PP-GFK FPM 37603634 s
622.10 DN15 G 1 PP-GFK EPDM 37600450 s
622.10 DN15 G 1 PVDF FEP 37600717 s

622.10 DN15 G 1 PVDF-GFK FEP 37601819 s
622.10 DN15 G 1 1.4581 FEP 37600695 s

OPTIONS

Type Design Loose flange Surcharge [EUR]
620.10 PVC Loose flange made of PVC-U &
620.10 PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
620.10 PP Loose flange made of PP with steel inlay s

620.10 PVDF Loose flange made of PP with steel inlay s

Type Design Loose flange Surcharge [EUR]
622.10 PVC Loose flange made of PVC-U s
622.10 PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay &
622.10 PP Loose flange made of PP with steel inlay s
622.10 PVDF Loose flange made of PP with steel inlay s

132 l basic version m available without extra charge s available with extra charge 5 not available & on request
