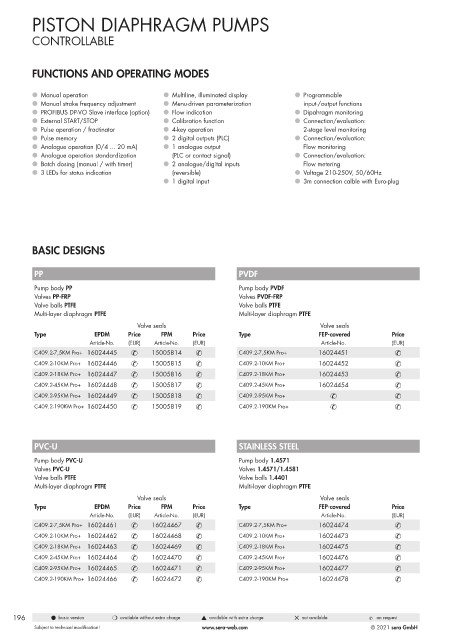

Page 196 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

l Manual operation l Multiline, illuminated display l Programmable
l Manual stroke frequency adjustment l Menu-driven parameterization input-/output functions
l PROFIBUS DP-VO Slave interface (option) l Flow indication l Dipahragm monitoring
l External START/STOP l Calibration function l Connection/evaluation:
l Pulse operation / fractinator l 4-key operation 2-stage level monitoring
l Pulse memory l 2 digital outputs (PLC) l Connection/evaluation:
l Analogue operation (0/4 ... 20 mA) l 1 analogue output Flow monitoring
l Analogue operation standardization (PLC or contact signal) l Connection/evaluation:
l Batch dosing (manual / with timer) l 2 analogue/digital inputs Flow metering
l 3 LEDs for status indication (reversible) l Voltage 210-250V, 50/60Hz
l 1 digital input l 3m connection calble with Euro-plug

BASIC DESIGNS

PP PVDF

Pump body PP Pump body PVDF
Valves PP-FRP Valves PVDF-FRP
Valve balls PTFE Valve balls PTFE
Multi-layer diaphragm PTFE Multi-layer diaphragm PTFE
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-7,5KM Pro+ 16024445 & 15005814 & C409.2-7,5KM Pro+ 16024451 &
C409.2-10KM Pro+ 16024446 & 15005815 & C409.2-10KM Pro+ 16024452 &
C409.2-18KM Pro+ 16024447 & 15005816 & C409.2-18KM Pro+ 16024453 &
C409.2-45KM Pro+ 16024448 & 15005817 & C409.2-45KM Pro+ 16024454 &
C409.2-95KM Pro+ 16024449 & 15005818 & C409.2-95KM Pro+ & &
C409.2-190KM Pro+ 16024450 & 15005819 & C409.2-190KM Pro+ & &

PVC-U STAINLESS STEEL

Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571/1.4581
Valve balls PTFE Valve balls 1.4401
Multi-layer diaphragm PTFE Multi-layer diaphragm PTFE
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-7,5KM Pro+ 16024461 & 16024467 & C409.2-7,5KM Pro+ 16024474 &
C409.2-10KM Pro+ 16024462 & 16024468 & C409.2-10KM Pro+ 16024473 &
C409.2-18KM Pro+ 16024463 & 16024469 & C409.2-18KM Pro+ 16024475 &
C409.2-45KM Pro+ 16024464 & 16024470 & C409.2-45KM Pro+ 16024476 &
C409.2-95KM Pro+ 16024465 & 16024471 & C409.2-95KM Pro+ 16024477 &
C409.2-190KM Pro+ 16024466 & 16024472 & C409.2-190KM Pro+ 16024478 &

196 l basic version m available without extra charge s available with extra charge 5 not available & on request
