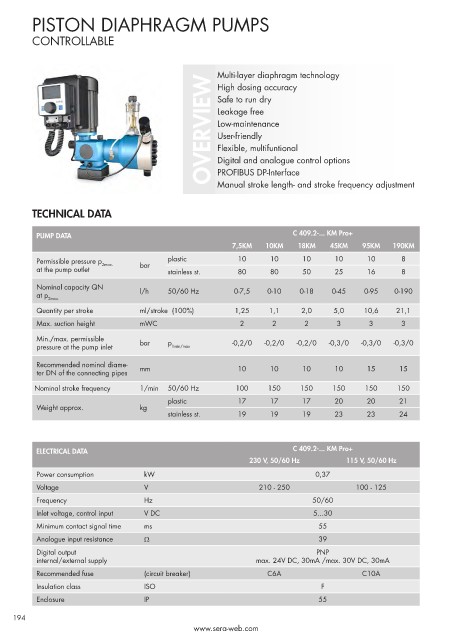

Page 194 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

CONTROLLABLE

Multi-layer diaphragm technology
OVERVIEW Leakage free
High dosing accuracy
Safe to run dry

Low-maintenance
User-friendly
Flexible, multifuntional
Digital and analogue control options

Manual stroke length- and stroke frequency adjustment

TECHNICAL DATA PROFIBUS DP-Interface

PUMP DATA C 409.2-... KM Pro+
7,5KM 10KM 18KM 45KM 95KM 190KM
Permissible pressure p 2max. bar plastic 10 10 10 10 10 8
at the pump outlet stainless st. 80 80 50 25 16 8
Nominal capacity QN l/h 50/60 Hz 0-7,5 0-10 0-18 0-45 0-95 0-190
at p 2max.
Quantity per stroke ml/stroke (100%) 1,25 1,1 2,0 5,0 10,6 21,1
Max. suction height mWC 2 2 2 3 3 3

Min./max. permissible bar p -0,2/0 -0,2/0 -0,2/0 -0,3/0 -0,3/0 -0,3/0
pressure at the pump inlet 1min/max

Recommended nominal diame- mm 10 10 10 10 15 15
ter DN of the connecting pipes

Nominal stroke frequency 1/min 50/60 Hz 100 150 150 150 150 150
plastic 17 17 17 20 20 21
Weight approx. kg
stainless st. 19 19 19 23 23 24

ELECTRICAL DATA C 409.2-... KM Pro+
230 V, 50/60 Hz 115 V, 50/60 Hz
Power consumption kW 0,37
Voltage V 210 - 250 100 - 125

Frequency Hz 50/60
Inlet voltage, control input V DC 5...30
Minimum contact signal time ms 55
Analogue input resistance Ω 39
Digital output PNP
internal/external supply max. 24V DC, 30mA /max. 30V DC, 30mA

Recommended fuse (circuit breaker) C6A C10A
Insulation class ISO F
Enclosure IP 55

194
