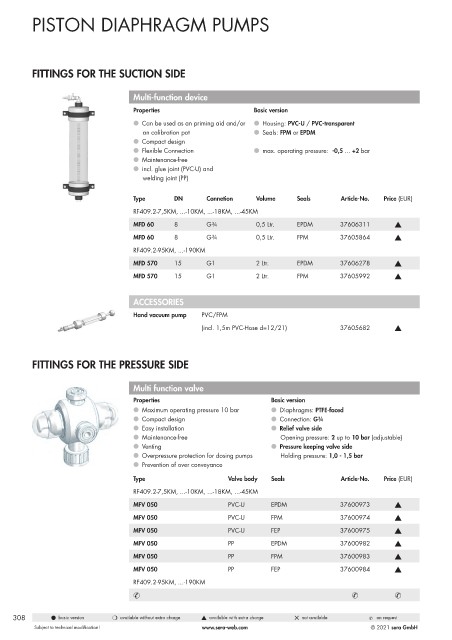

Page 308 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

FITTINGS FOR THE SUCTION SIDE

Multi-function device
Properties Basic version

l Can be used as an priming aid and/or l Housing: PVC-U / PVC-transparent
an calibration pot l Seals: FPM or EPDM
l Compact design
l Flexible Connection l max. operating pressure: -0,5 ... +2 bar
l Maintenance-free
l incl. glue joint (PVC-U) and
welding joint (PP)

Type DN Connetion Volume Seals Article-No. Price (EUR)
RF409.2-7,5KM, ...-10KM, ...-18KM, ...-45KM
MFD 60 8 G¾ 0,5 Ltr. EPDM 37606311 s
MFD 60 8 G¾ 0,5 Ltr. FPM 37605864 s
RF409.2-95KM, ...-190KM

MFD 570 15 G1 2 Ltr. EPDM 37606278 s
MFD 570 15 G1 2 Ltr. FPM 37605992 s

ACCESSORIES
Hand vacuum pump PVC/FPM
(incl. 1,5m PVC-Hose d=12/21) 37605682 s

FITTINGS FOR THE PRESSURE SIDE

Multi function valve
Properties Basic version
l Maximum operating pressure 10 bar l Diaphragms: PTFE-faced
l Compact design l Connection: G¾
l Easy installation l Relief valve side
l Maintenance-free Opening pressure: 2 up to 10 bar (adjustable)
l Venting l Pressure keeping valve side
l Overpressure protection for dosing pumps Holding pressure: 1,0 - 1,5 bar
l Prevention of over conveyance
Type Valve body Seals Article-No. Price (EUR)
RF409.2-7,5KM, ...-10KM, ...-18KM, ...-45KM
MFV 050 PVC-U EPDM 37600973 s
MFV 050 PVC-U FPM 37600974 s
MFV 050 PVC-U FEP 37600975 s

MFV 050 PP EPDM 37600982 s
MFV 050 PP FPM 37600983 s
MFV 050 PP FEP 37600984 s
RF409.2-95KM, ...-190KM
& & &

308 l basic version m available without extra charge s available with extra charge 5 not available & on request
