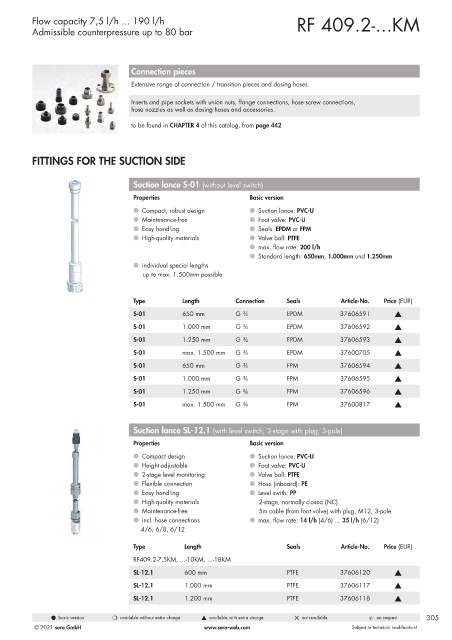

Page 305 - Pompy Dozujące 2021

Flow capacity 7,5 l/h ... 190 l/h RF 409.2-...KM
Admissible counterpressure up to 80 bar

Connection pieces
Extensive range of connection / transition pieces and dosing hoses

Inserts and pipe sockets with union nuts, flange connections, hose screw connections,
hose nozzles as well as dosing hoses and accessories.

to be found in CHAPTER 4 of this catalog, from page 442

FITTINGS FOR THE SUCTION SIDE

Suction lance S-01 (without level switch)
Properties Basic version
l Compact, robust design l Suction lance: PVC-U
l Maintenance-free l Foot valve: PVC-U
l Easy handling l Seals: EPDM or FPM
l High-quality materials l Valve ball: PTFE
l max. flow rate: 200 l/h
l Standard length: 650mm, 1.000mm und 1.250mm
l individual special lengths
up to max. 1.500mm possible

Type Length Connection Seals Article-No. Price (EUR)
S-01 650 mm G ¾ EPDM 37606591 s
S-01 1.000 mm G ¾ EPDM 37606592 s
S-01 1.250 mm G ¾ EPDM 37606593 s
S-01 max. 1.500 mm G ¾ EPDM 37600705 s
S-01 650 mm G ¾ FPM 37606594 s

S-01 1.000 mm G ¾ FPM 37606595 s
S-01 1.250 mm G ¾ FPM 37606596 s
S-01 max. 1.500 mm G ¾ FPM 37600817 s

Suction lance SL-12.1 (with level switch, 2-stage with plug, 3-pole)
Properties Basic version
l Compact design l Suction lance: PVC-U
l Height-adjustable l Foot valve: PVC-U
l 2-stage level monitoring l Valve ball: PTFE
l Flexible connection l Hose (inboard): PE
l Easy handling l Level swith: PP
l High-quality materials 2-stage, normally closed (NC)
l Maintenance-free 5m cable (from foot valve) with plug, M12, 3-pole
l incl. hose connections l max. flow rate: 14 l/h (4/6) ... 35 l/h (6/12)
4/6, 6/8, 6/12

Type Length Seals Article-No. Price (EUR)
RF409.2-7,5KM, ...-10KM, ...-18KM
SL-12.1 600 mm PTFE 37606120 s

SL-12.1 1.000 mm PTFE 37606117 s
SL-12.1 1.200 mm PTFE 37606118 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 305
