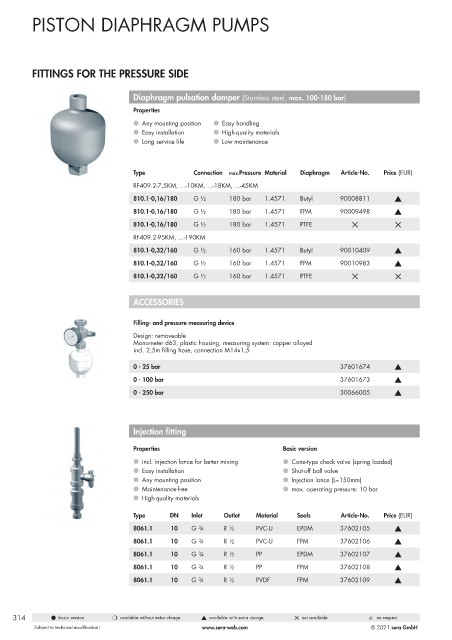

PISTON DIAPHRAGM PUMPS

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 100-180 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
RF409.2-7,5KM, ...-10KM, ...-18KM, ...-45KM
810.1-0,16/180 G ½ 180 bar 1.4571 Butyl 90008811 s
810.1-0,16/180 G ½ 180 bar 1.4571 FPM 90009498 s
810.1-0,16/180 G ½ 180 bar 1.4571 PTFE 5 5
RF409.2-95KM, ...-190KM
810.1-0,32/160 G ½ 160 bar 1.4571 Butyl 90010409 s

810.1-0,32/160 G ½ 160 bar 1.4571 FPM 90010983 s
810.1-0,32/160 G ½ 160 bar 1.4571 PTFE 5 5

ACCESSORIES

Filling- and pressure measuring device
Design: removeable
Manometer d63, plastic housing, measuring system: copper alloyed
incl. 2,5m filling hose, connection M14x1,5

0 - 25 bar 37601674 s
0 - 100 bar 37601673 s
0 - 250 bar 30066005 s

Injection fitting

Properties Basic version
l incl. injection lance for better mixing l Cone-type check valve (spring loaded)
l Easy installation l Shut-off ball valve
l Any mounting position l Injection lance (L=150mm)
l Maintenance-free l max. operating pressure: 10 bar
l High-quality materials

Type DN Inlet Outlet Material Seals Article-No. Price (EUR)
8061.1 10 G ¾ R ½ PVC-U EPDM 37602105 s
8061.1 10 G ¾ R ½ PVC-U FPM 37602106 s
8061.1 10 G ¾ R ½ PP EPDM 37602107 s
8061.1 10 G ¾ R ½ PP FPM 37602108 s

8061.1 10 G ¾ R ½ PVDF FPM 37602109 s

314 l basic version m available without extra charge s available with extra charge 5 not available & on request
