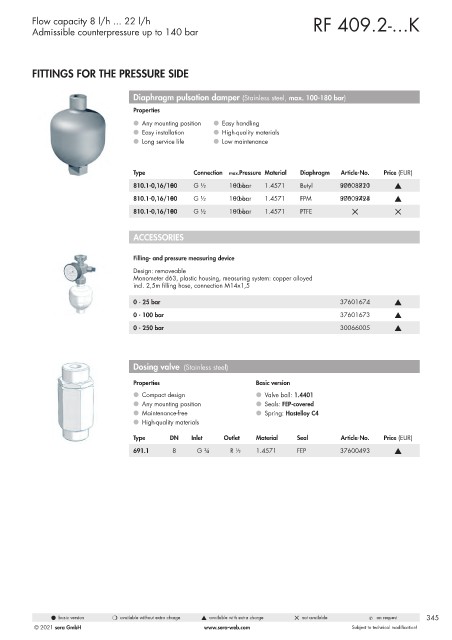

Flow capacity 8 l/h ... 22 l/h RF 409.2-...K
Admissible counterpressure up to 140 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 100-180 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
Butyl
1.4571
G ½
37603720
180 bar
810.1-0,16/180 G ½ 10 bar 1.4571 Butyl 90008811 s s
810.1-0,16/10
180 bar
G ½
37603724
1.4571
FPM
810.1-0,16/180 G ½ 10 bar 1.4571 FPM 90009498 s s
810.1-0,16/10
1.4571
G ½
10 bar
PTFE
810.1-0,16/180
810.1-0,16/10 G ½ 180 bar 1.4571 PTFE 5 5 5 5
ACCESSORIES
Filling- and pressure measuring device
Design: removeable
Manometer d63, plastic housing, measuring system: copper alloyed
incl. 2,5m filling hose, connection M14x1,5
0 - 25 bar 37601674 s
0 - 100 bar 37601673 s
0 - 250 bar 30066005 s
Dosing valve (Stainless steel)

Properties Basic version
l Compact design l Valve ball: 1.4401
l Any mounting position l Seals: FEP-covered
l Maintenance-free l Spring: Hastelloy C4
l High-quality materials
Type DN Inlet Outlet Material Seal Article-No. Price (EUR)
691.1 8 G ¾ R ½ 1.4571 FEP 37600493 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 345
