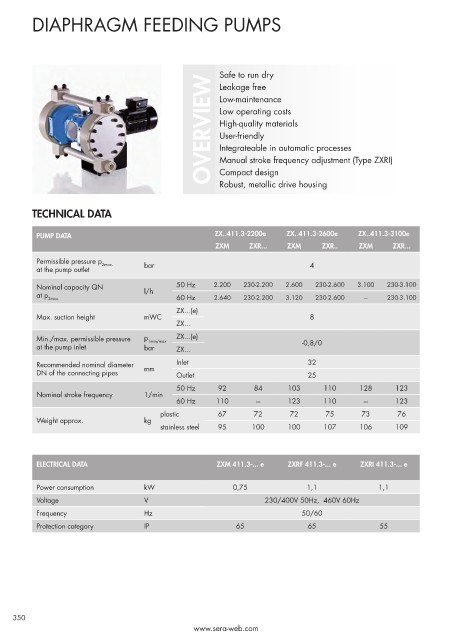

DIAPHRAGM FEEDING PUMPS

Safe to run dry
OVERVIEW Low operating costs
Leakage free
Low-maintenance

High-quality materials
User-friendly
Integrateable in automatic processes
Manual stroke frequency adjustment (Type ZXRI)

Robust, metallic drive housing

TECHNICAL DATA Compact design

PUMP DATA ZX..411.3-2200e ZX..411.3-2600e ZX..411.3-3100e
ZXM ZXR... ZXM ZXR.. ZXM ZXR...
Permissible pressure p 2max. bar 4
at the pump outlet
Nominal capacity QN l/h 50 Hz 2.200 230-2.200 2.600 230-2.600 3.100 230-3.100
at p 2max. 60 Hz 2.640 230-2.200 3.120 230-2.600 --- 230-3.100
ZX...(e)
Max. suction height mWC 8
ZX...

Min./max. permissible pressure p 1min/max ZX...(e) -0,8/0
at the pump inlet bar ZX...

Recommended nominal diameter mm Inlet 32
DN of the connecting pipes Outlet 25

50 Hz 92 84 103 110 128 123
Nominal stroke frequency 1/min
60 Hz 110 --- 123 110 --- 123
plastic 67 72 72 75 73 76
Weight approx. kg
stainless steel 95 100 100 107 106 109

ELECTRICAL DATA ZXM 411.3-... e ZXRF 411.3-... e ZXRI 411.3-... e

Power consumption kW 0,75 1,1 1,1

Voltage V 230/400V 50Hz, 460V 60Hz
Frequency Hz 50/60
Protection category IP 65 65 55
