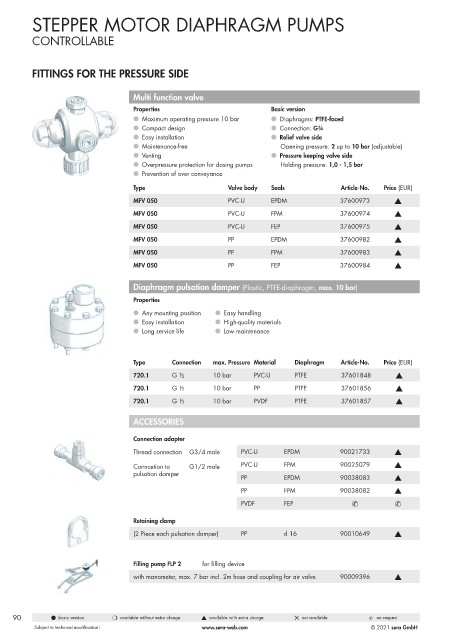

Page 90 - Pompy Dozujące 2021

STEPPER MOTOR DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Multi function valve
Properties Basic version
l Maximum operating pressure 10 bar l Diaphragms: PTFE-faced
l Compact design l Connection: G¾
l Easy installation l Relief valve side
l Maintenance-free Opening pressure: 2 up to 10 bar (adjustable)
l Venting l Pressure keeping valve side
l Overpressure protection for dosing pumps Holding pressure: 1,0 - 1,5 bar
l Prevention of over conveyance
Type Valve body Seals Article-No. Price (EUR)
MFV 050 PVC-U EPDM 37600973 s
MFV 050 PVC-U FPM 37600974 s

MFV 050 PVC-U FEP 37600975 s
MFV 050 PP EPDM 37600982 s
MFV 050 PP FPM 37600983 s
MFV 050 PP FEP 37600984 s

Diaphragm pulsation damper (Plastic, PTFE-diaphragm, max. 10 bar)

Properties
l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max. Pressure Material Diaphragm Article-No. Price (EUR)
720.1 G ½ 10 bar PVC-U PTFE 37601848 s
720.1 G ½ 10 bar PP PTFE 37601856 s
720.1 G ½ 10 bar PVDF PTFE 37601857 s

ACCESSORIES

Connection adapter
Thread connection G3/4 male PVC-U EPDM 90021733 s
Conncetion to G1/2 male PVC-U FPM 90025079 s
pulsation damper
PP EPDM 90038083 s
PP FPM 90038082 s
PVDF FEP & &

Retaining clamp
(2 Piece each pulsation damper) PP d 16 90010649 s

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

90 l basic version m available without extra charge s available with extra charge 5 not available & on request
