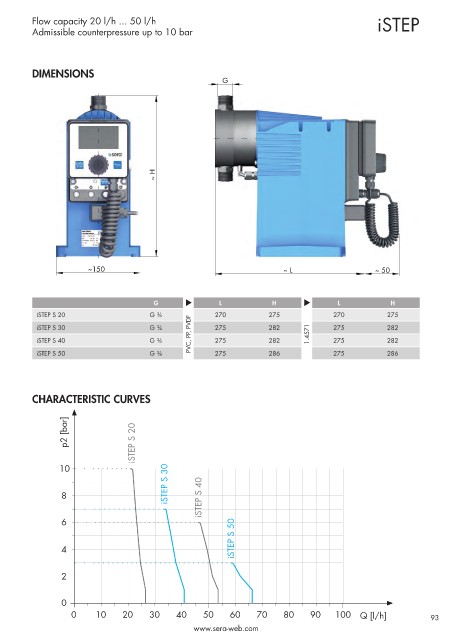

Flow capacity 20 l/h ... 50 l/h iSTEP
Admissible counterpressure up to 10 bar

DIMENSIONS
G

~ H

~150 ~ L ~ 50

G s L H s L H
iSTEP S 20 G ¾ 270 275 270 275
iSTEP S 30 G ¾ 275 282 275 282
iSTEP S 40 G ¾ PVC, PP, PVDF 275 282 1.4571 275 282
iSTEP S 50 G ¾ 275 15 286 100 275 (12,5) 286
18

9

CHARACTERISTIC CURVES

p2 [bar] iSTEP S 20 130

10 Ø 9 Ø 9
iSTEP S 30 157,9

8 iSTEP S 40

6
iSTEP S 50

4

2

0
0 10 20 30 40 50 60 70 80 90 100 Q [l/h] 93
