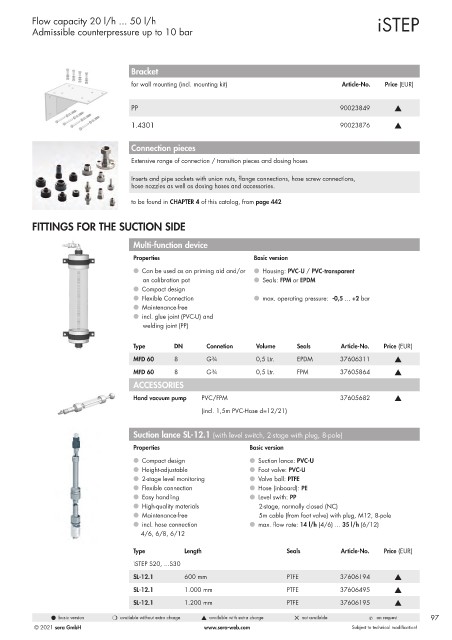

Flow capacity 20 l/h ... 50 l/h iSTEP
Admissible counterpressure up to 10 bar

Bracket
for wall mounting (incl. mounting kit) Article-No. Price (EUR)

PP 90023849 s

1.4301 90023876 s

Connection pieces

Extensive range of connection / transition pieces and dosing hoses

Inserts and pipe sockets with union nuts, flange connections, hose screw connections,
hose nozzles as well as dosing hoses and accessories.
to be found in CHAPTER 4 of this catalog, from page 442

FITTINGS FOR THE SUCTION SIDE

Multi-function device

Properties Basic version
l Can be used as an priming aid and/or l Housing: PVC-U / PVC-transparent

an calibration pot l Seals: FPM or EPDM
l Compact design
l Flexible Connection l max. operating pressure: -0,5 ... +2 bar
l Maintenance-free
l incl. glue joint (PVC-U) and
welding joint (PP)

Type DN Connetion Volume Seals Article-No. Price (EUR)
MFD 60 8 G¾ 0,5 Ltr. EPDM 37606311 s
MFD 60 8 G¾ 0,5 Ltr. FPM 37605864 s
ACCESSORIES

Hand vacuum pump PVC/FPM 37605682 s
(incl. 1,5m PVC-Hose d=12/21)

Suction lance SL-12.1 (with level switch, 2-stage with plug, 8-pole)
Properties Basic version
l Compact design l Suction lance: PVC-U
l Height-adjustable l Foot valve: PVC-U
l 2-stage level monitoring l Valve ball: PTFE
l Flexible connection l Hose (inboard): PE
l Easy handling l Level swith: PP
l High-quality materials 2-stage, normally closed (NC)
l Maintenance-free 5m cable (from foot valve) with plug, M12, 8-pole
l incl. hose connection l max. flow rate: 14 l/h (4/6) ... 35 l/h (6/12)
4/6, 6/8, 6/12

Type Length Seals Article-No. Price (EUR)
iSTEP S20, ...S30
SL-12.1 600 mm PTFE 37606194 s
SL-12.1 1.000 mm PTFE 37606495 s
SL-12.1 1.200 mm PTFE 37606195 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 97
