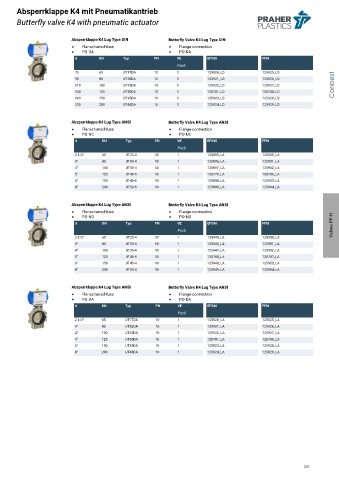

Absperrklappe K4 mit Pneumatikantrieb
Butterfly valve K4 with pneumatic actuator

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
1 75 65 UT17DA 10 1 125920_LD 125925_LD
1 90 80 UT20DA 10 1 125921_LD 125926_LD
1 110 100 UT25DA 10 1 125922_LD 125927_LD Conbest
1 140 125 UT30DA 10 1 128781_LD 128788_LD
1 160 150 UT35DA 10 1 125923_LD 125928_LD
1 225 200 UT40DA 10 1 125924_LD 125929_LD

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 2 1/2" 65 UT25-4 10 1 125895_LA 125900_LA
1 3" 80 UT30-4 10 1 125896_LA 125901_LA
1 4" 100 UT35-4 10 1 125897_LA 125902_LA
1 5" 125 UT40-5 10 1 128779_LA 128786_LA
1 6" 150 UT45-5 10 1 125898_LA 125903_LA
1 8" 200 UT50-5 10 1 125899_LA 125904_LA

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM Valves PP-H
Pack
1 2 1/2" 65 UT25-4 10 1 125945_LA 125950_LA
1 3" 80 UT30-4 10 1 125946_LA 125951_LA
1 4" 100 UT35-4 10 1 125947_LA 125952_LA
1 5" 125 UT40-5 10 1 128780_LA 128787_LA
1 6" 150 UT45-4 10 1 125948_LA 125953_LA
1 8" 200 UT50-4 10 1 125949_LA 125954_LA

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
1 2 1/2" 65 UT17DA 10 1 125920_LA 125925_LA
1 3" 80 UT20DA 10 1 125921_LA 125926_LA
1 4" 100 UT25DA 10 1 125922_LA 125927_LA
1 5" 125 UT30DA 10 1 128781_LA 128788_LA
1 6" 150 UT35DA 10 1 125923_LA 125928_LA
1 8" 200 UT40DA 10 1 125924_LA 125929_LA

241
