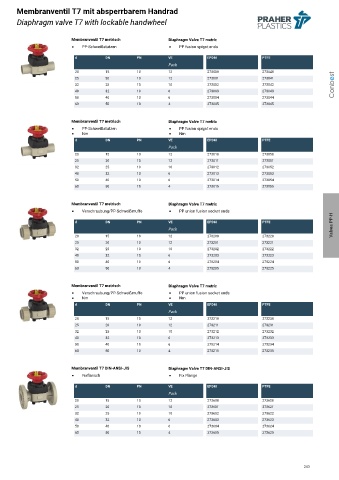

Membranventil T7 mit absperrbarem Handrad
Diaphragm valve T7 with lockable handwheel

Membranventil T7 metrisch Diaphragm Valve T7 metric
PP-Schweißstutzen PP fusion spigot ends
d DN PN VE EPDM PTFE
Pack
2 20 15 10 12 273000 273040
Conbest
2 25 20 10 12 273001 273041
2 32 25 10 10 273002 273042
2 40 32 10 6 273003 273043
2 50 40 10 6 273004 273044
2 63 50 10 4 273005 273045

Membranventil T7 metrisch Diaphragm Valve T7 metric
PP-Schweißstutzen PP fusion spigot ends
Nm Nm
d DN PN VE EPDM PTFE
Pack
2 20 15 10 12 273010 273050
2 25 20 10 12 273011 273051
2 32 25 10 10 273012 273052
2 40 32 10 6 273013 273053
2 50 40 10 6 273014 273054
2 63 50 10 4 273015 273055

Membranventil T7 metrisch Diaphragm Valve T7 metric
Verschraubung/PP-Schweißmuffe PP union fusion socket ends
Valves PP-H
d DN PN VE EPDM PTFE
Pack
2 20 15 10 12 273200 273220
2 25 20 10 12 273201 273221
2 32 25 10 10 273202 273222
2 40 32 10 6 273203 273223
2 50 40 10 6 273204 273224
2 63 50 10 4 273205 273225

Membranventil T7 metrisch Diaphragm Valve T7 metric
Verschraubung/PP-Schweißmuffe PP union fusion socket ends
Nm Nm
d DN PN VE EPDM PTFE
Pack
2 20 15 10 12 273210 273230
2 25 20 10 12 273211 273231
2 32 25 10 10 273212 273232
2 40 32 10 6 273213 273233
2 50 40 10 6 273214 273234
2 63 50 10 4 273215 273235

Membranventil T7 DIN-ANSI-JIS Diaphragm Valve T7 DIN-ANSI-JIS
Fixflansch Fix Flange
d DN PN VE EPDM PTFE
Pack
2 20 15 10 12 273600 273620
2 25 20 10 10 273601 273621
2 32 25 10 10 273602 273622
2 40 32 10 6 273603 273623
2 50 40 10 6 273604 273624
2 63 50 10 4 273605 273625

243
