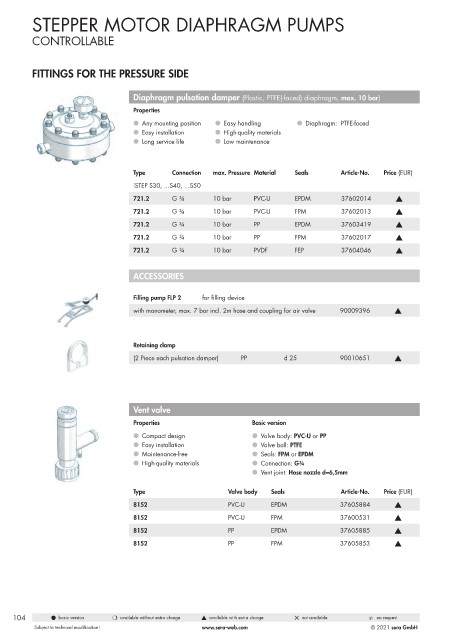

Page 104 - Pompy Dozujące 2021

STEPPER MOTOR DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Plastic, PTFE(-faced) diaphragm, max. 10 bar)
Properties

l Any mounting position l Easy handling l Diaphragm: PTFE-faced
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max. Pressure Material Seals Article-No. Price (EUR)
iSTEP S30, ...S40, ...S50
721.2 G ¾ 10 bar PVC-U EPDM 37602014 s
721.2 G ¾ 10 bar PVC-U FPM 37602013 s
721.2 G ¾ 10 bar PP EPDM 37603419 s
721.2 G ¾ 10 bar PP FPM 37602017 s
721.2 G ¾ 10 bar PVDF FEP 37604046 s

ACCESSORIES

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

Retaining clamp
(2 Piece each pulsation damper) PP d 25 90010651 s

Vent valve

Properties Basic version
l Compact design l Valve body: PVC-U or PP
l Easy installation l Valve ball: PTFE
l Maintenance-free l Seals: FPM or EPDM
l High-quality materials l Connection: G¾
l Vent joint: Hose nozzle d=6,5mm

Type Valve body Seals Article-No. Price (EUR)
8152 PVC-U EPDM 37605884 s
8152 PVC-U FPM 37600531 s
8152 PP EPDM 37605885 s

8152 PP FPM 37605853 s

104 l basic version m available without extra charge s available with extra charge 5 not available & on request
