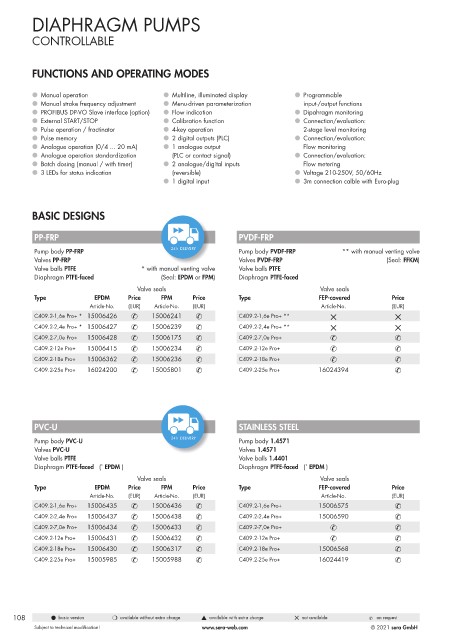

Page 108 - Pompy Dozujące 2021

DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

● Manual operation ● Multiline, illuminated display ● Programmable
● Manual stroke frequency adjustment ● Menu-driven parameterization input-/output functions
● PROFIBUS DP-VO Slave interface (option) ● Flow indication ● Dipahragm monitoring
● External START/STOP ● Calibration function ● Connection/evaluation:
● Pulse operation / fractinator ● 4-key operation 2-stage level monitoring
● Pulse memory ● 2 digital outputs (PLC) ● Connection/evaluation:
● Analogue operation (0/4 ... 20 mA) ● 1 analogue output Flow monitoring
● Analogue operation standardization (PLC or contact signal) ● Connection/evaluation:
● Batch dosing (manual / with timer) ● 2 analogue/digital inputs Flow metering
● 3 LEDs for status indication (reversible) ● Voltage 210-250V, 50/60Hz
● 1 digital input ● 3m connection calble with Euro-plug

BASIC DESIGNS

PP-FRP PVDF-FRP

Pump body PP-FRP Pump body PVDF-FRP ** with manual venting valve
Valves PP-FRP Valves PVDF-FRP (Seal: FFKM)
Valve balls PTFE * with manual venting valve Valve balls PTFE
Diaphragm PTFE-faced (Seal: EPDM or FPM) Diaphragm PTFE-faced
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-1,6e Pro+ * 15006426 & 15006241 & C409.2-1,6e Pro+ ** 5 5
C409.2-2,4e Pro+ * 15006427 & 15006239 & C409.2-2,4e Pro+ ** 5 5
C409.2-7,0e Pro+ 15006428 & 15006175 & C409.2-7,0e Pro+ & &
C409.2-12e Pro+ 15006415 & 15006234 & C409.2-12e Pro+ & &
C409.2-18e Pro+ 15006362 & 15006236 & C409.2-18e Pro+ & &
C409.2-25e Pro+ 16024200 & 15005801 & C409.2-25e Pro+ 16024394 &

PVC-U STAINLESS STEEL

Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571
Valve balls PTFE Valve balls 1.4401
Diaphragm PTFE-faced ( EPDM ) Diaphragm PTFE-faced ( EPDM )
*
*
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-1,6e Pro+ 15006435 & 15006436 & C409.2-1,6e Pro+ 15006575 &
C409.2-2,4e Pro+ 15006437 & 15006438 & C409.2-2,4e Pro+ 15006590 &
C409.2-7,0e Pro+ 15006434 & 15006433 & C409.2-7,0e Pro+ & &
C409.2-12e Pro+ 15006431 & 15006432 & C409.2-12e Pro+ & &
C409.2-18e Pro+ 15006430 & 15006317 & C409.2-18e Pro+ 15006568 &
C409.2-25e Pro+ 15005985 & 15005988 & C409.2-25e Pro+ 16024419 &

108 l basic version m available without extra charge s available with extra charge 5 not available & on request
