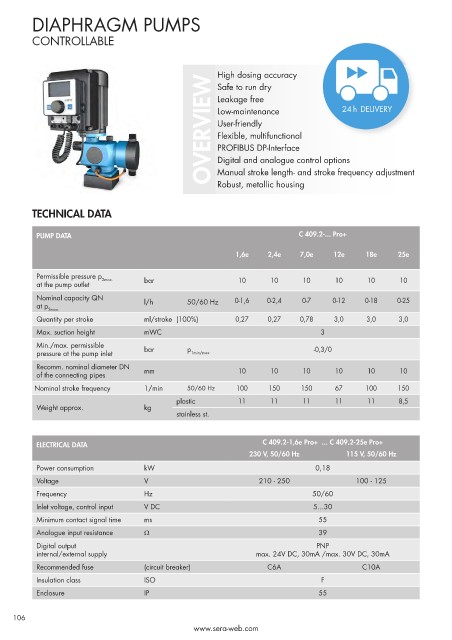

DIAPHRAGM PUMPS

CONTROLLABLE

High dosing accuracy
OVERVIEW Low-maintenance
Safe to run dry
Leakage free

User-friendly
Flexible, multifunctional
PROFIBUS DP-Interface
Digital and analogue control options

Robust, metallic housing

TECHNICAL DATA Manual stroke length- and stroke frequency adjustment

PUMP DATA C 409.2-... Pro+

1,6e 2,4e 7,0e 12e 18e 25e

Permissible pressure p 2max. bar 10 10 10 10 10 10
at the pump outlet
Nominal capacity QN l/h 50/60 Hz 0-1,6 0-2,4 0-7 0-12 0-18 0-25
at p 2max.
Quantity per stroke ml/stroke (100%) 0,27 0,27 0,78 3,0 3,0 3,0
Max. suction height mWC 3
Min./max. permissible
pressure at the pump inlet bar p 1min/max -0,3/0

Recomm. nominal diameter DN mm 10 10 10 10 10 10
of the connecting pipes
Nominal stroke frequency 1/min 50/60 Hz 100 150 150 67 100 150
plastic 11 11 11 11 11 8,5
Weight approx. kg
stainless st.

ELECTRICAL DATA C 409.2-1,6e Pro+ ... C 409.2-25e Pro+
230 V, 50/60 Hz 115 V, 50/60 Hz
Power consumption kW 0,18
Voltage V 210 - 250 100 - 125
Frequency Hz 50/60
Inlet voltage, control input V DC 5...30

Minimum contact signal time ms 55
Analogue input resistance Ω 39
Digital output PNP
internal/external supply max. 24V DC, 30mA /max. 30V DC, 30mA
Recommended fuse (circuit breaker) C6A C10A

Insulation class ISO F
Enclosure IP 55

106
