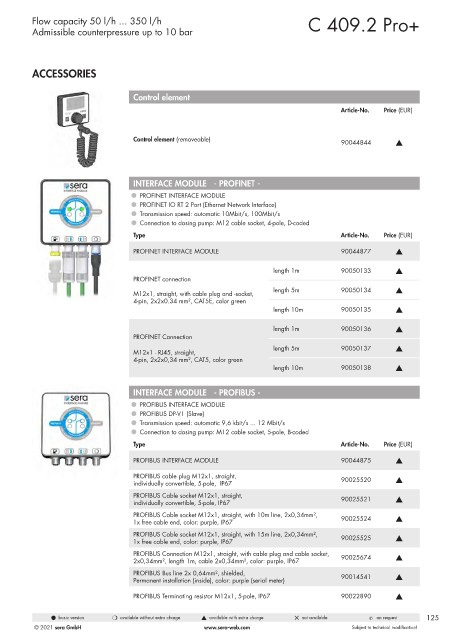

Page 125 - Pompy Dozujące 2021

Flow capacity 50 l/h ... 350 l/h C 409.2 Pro+
Admissible counterpressure up to 10 bar

ACCESSORIES

Control element
Article-No. Price (EUR)

Control element (removeable) 90044844 s

INTERFACE MODULE - PROFINET -

l PROFINET INTERFACE MODULE
l PROFINET IO RT 2 Port (Ethernet Network Interface)
l Transmission speed: automatic 10Mbit/s, 100Mbit/s
l Connection to dosing pump: M12 cable socket, 4-pole, D-coded
Type Article-No. Price (EUR)

PROFINET INTERFACE MODULE 90044877 s

length 1m 90050133 s
PROFINET connection
length 5m 90050134 s
M12x1, straight, with cable plug and -socket,
4-pin, 2x2x0.34 mm², CAT5E, color green
length 10m 90050135 s

length 1m 90050136 s
PROFINET Connection
length 5m 90050137 s
M12x1 - RJ45, straight,
4-pin, 2x2x0,34 mm², CAT5, color green
length 10m 90050138 s

INTERFACE MODULE - PROFIBUS -
l PROFIBUS INTERFACE MODULE
l PROFIBUS DP-V1 (Slave)
l Transmission speed: automatic 9,6 kbit/s ... 12 Mbit/s
l Connection to dosing pump: M12 cable socket, 5-pole, B-coded
Type Article-No. Price (EUR)

PROFIBUS INTERFACE MODULE 90044875 s

PROFIBUS cable plug M12x1, straight, 90025520
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, 90025521
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, with 10m line, 2x0,34mm², 90025524
1x free cable end, color: purple, IP67 s
PROFIBUS Cable socket M12x1, straight, with 15m line, 2x0,34mm²,
1x free cable end, color: purple, IP67 90025525 s
PROFIBUS Connection M12x1, straight, with cable plug and cable socket, 90025674
2x0,34mm², length 1m, cable 2x0,34mm², color: purple, IP67 s
PROFIBUS Bus line 2x 0,64mm², shielded, 90014541
Permanent installation (inside), color: purple (serial meter) s
PROFIBUS Terminating resistor M12x1, 5-pole, IP67 90022890 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 125
