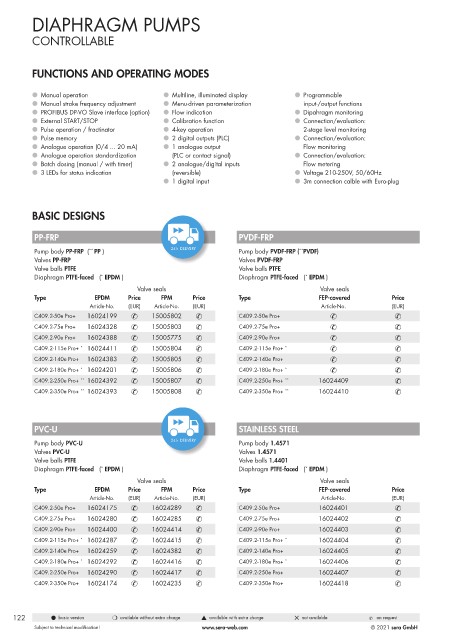

DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

● Manual operation ● Multiline, illuminated display ● Programmable
● Manual stroke frequency adjustment ● Menu-driven parameterization input-/output functions
● PROFIBUS DP-VO Slave interface (option) ● Flow indication ● Dipahragm monitoring
● External START/STOP ● Calibration function ● Connection/evaluation:
● Pulse operation / fractinator ● 4-key operation 2-stage level monitoring
● Pulse memory ● 2 digital outputs (PLC) ● Connection/evaluation:
● Analogue operation (0/4 ... 20 mA) ● 1 analogue output Flow monitoring
● Analogue operation standardization (PLC or contact signal) ● Connection/evaluation:
● Batch dosing (manual / with timer) ● 2 analogue/digital inputs Flow metering
● 3 LEDs for status indication (reversible) ● Voltage 210-250V, 50/60Hz
● 1 digital input ● 3m connection calble with Euro-plug

BASIC DESIGNS

PP-FRP PVDF-FRP

Pump body PP-FRP ( PP ) Pump body PVDF-FRP ( PVDF)
**
**
Valves PP-FRP Valves PVDF-FRP
Valve balls PTFE Valve balls PTFE
Diaphragm PTFE-faced ( EPDM ) Diaphragm PTFE-faced ( EPDM )
*
*
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-50e Pro+ 16024199 & 15005802 & C409.2-50e Pro+ & &
C409.2-75e Pro+ 16024328 & 15005803 & C409.2-75e Pro+ & &
C409.2-90e Pro+ 16024388 & 15005775 & C409.2-90e Pro+ & &
C409.2-115e Pro+ * 16024411 & 15005804 & C409.2-115e Pro+ * & &
C409.2-140e Pro+ 16024383 & 15005805 & C409.2-140e Pro+ & &
C409.2-180e Pro+ * 16024201 & 15005806 & C409.2-180e Pro+ * & &
C409.2-250e Pro+ ** 16024392 & 15005807 & C409.2-250e Pro+ ** 16024409 &
C409.2-350e Pro+ ** 16024393 & 15005808 & C409.2-350e Pro+ ** 16024410 &

PVC-U STAINLESS STEEL
Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571
Valve balls PTFE Valve balls 1.4401
Diaphragm PTFE-faced ( EPDM ) Diaphragm PTFE-faced ( EPDM )
*
*
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-50e Pro+ 16024175 & 16024289 & C409.2-50e Pro+ 16024401 &
C409.2-75e Pro+ 16024280 & 16024285 & C409.2-75e Pro+ 16024402 &
C409.2-90e Pro+ 16024400 & 16024414 & C409.2-90e Pro+ 16024403 &
C409.2-115e Pro+ * 16024287 & 16024415 & C409.2-115e Pro+ * 16024404 &
C409.2-140e Pro+ 16024259 & 16024382 & C409.2-140e Pro+ 16024405 &
C409.2-180e Pro+ * 16024292 & 16024416 & C409.2-180e Pro+ * 16024406 &
C409.2-250e Pro+ 16024290 & 16024417 & C409.2-250e Pro+ 16024407 &
C409.2-350e Pro+ 16024174 & 16024235 & C409.2-350e Pro+ 16024418 &

122 l basic version m available without extra charge s available with extra charge 5 not available & on request
