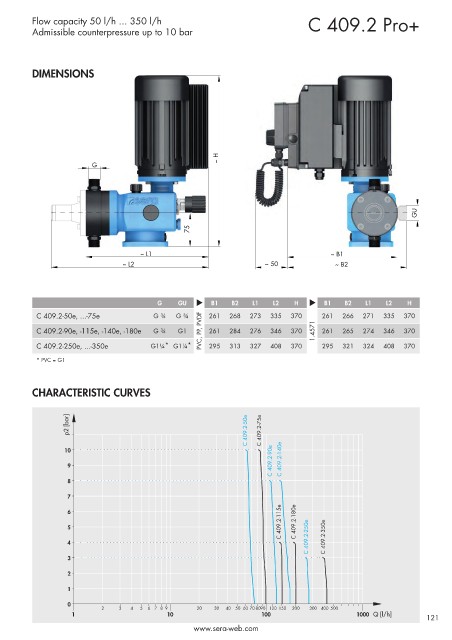

Flow capacity 50 l/h ... 350 l/h C 409.2 Pro+
Admissible counterpressure up to 10 bar

DIMENSIONS

~ H
G

GU

75

~ L1 ~ B1
~ L2 ~ 50 ~ B2

G GU s B1 B2 L1 L2 H s B1 B2 L1 L2 H
C 409.2-50e, ...-75e G ¾ G ¾ 261 268 273 335 370 261 266 271 335 370

C 409.2-90e, -115e, -140e, -180e G ¾ G1 PVC, PP, PVDF 261 284 276 346 370 1.4571 261 265 274 346 370
C 409.2-250e, ...-350e G1¼ * G1¼ * 295 313 327 408 370 295 321 324 408 370

* PVC = G1

CHARACTERISTIC CURVES

p2 [bar] C 409.2-50e C 409.2-75e

C 409.2-90e C 409.2-140e
10
9
8

7
C 409.2-115e C 409.2-180e
6
5

4 C 409.2-250e C 409.2-350e
3

2
1

0
2 3 4 5 6 7 8 9 20 30 40 50 60 70 8090 120 150 200 300 400 500
1 10 100 1000 Q [l/h] 121
