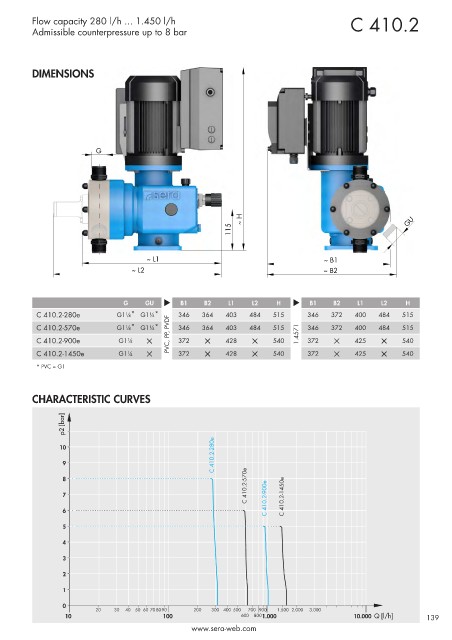

Page 139 - Pompy Dozujące 2021

Flow capacity 280 l/h ... 1.450 l/h C 410.2
Admissible counterpressure up to 8 bar

DIMENSIONS

G

~ H GU
115

~ L1 ~ B1
~ L2 ~ B2

G GU s B1 B2 L1 L2 H s B1 B2 L1 L2 H
C 410.2-280e G1¼ * G1¼ * 346 364 403 484 515 346 372 400 484 515
C 410.2-570e G1¼ * G1¼ * 346 364 403 484 515 346 372 400 484 515
C 410.2-900e G1¼ 5 PVC, PP, PVDF 372 5 428 5 540 1.4571 372 5 425 5 540
C 410.2-1450e G1¼ 5 372 5 428 5 540 372 5 425 5 540

* PVC = G1

CHARACTERISTIC CURVES

p2 [bar]

C 410.2-280e
10

9
8 C 410.2-570e

7 C 410.2-900e C 410.2-1450e
6

5
4

3

2
1

0
20 30 40 50 60 70 8090 200 300 400 500 700 900 1.500 2.000 3.000
10 100 600 800 1.000 10.000 Q [l/h] 139
