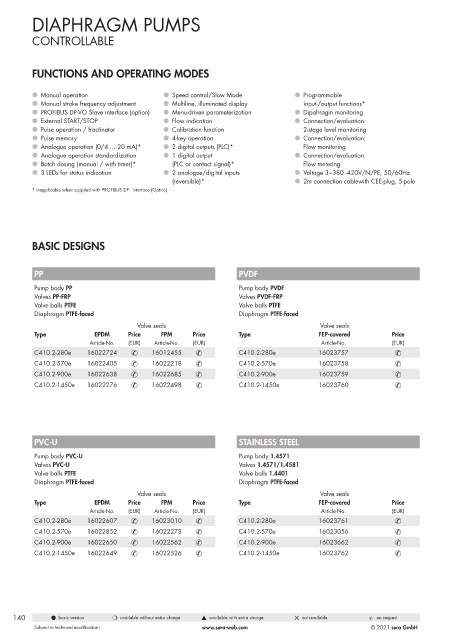

DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

l Manual operation l Speed control/Slow Mode l Programmable
l Manual stroke frequency adjustment l Multiline, illuminated display input-/output functions*
l PROFIBUS DP-VO Slave interface (option) l Menu-driven parameterization l Dipahragm monitoring
l External START/STOP l Flow indication l Connection/evaluation:
l Pulse operation / fractinator l Calibration function 2-stage level monitoring
l Pulse memory l 4-key operation l Connection/evaluation:
l Analogue operation (0/4 ... 20 mA)* l 2 digital outputs (PLC)* Flow monitoring
l Analogue operation standardization l 1 digital output l Connection/evaluation:
l Batch dosing (manual / with timer)* (PLC or contact signal)* Flow metering
l 3 LEDs for status indication l 2 analogue/digital inputs l Voltage 3~380 -420V/N/PE, 50/60Hz
(reversible)* l 2m connection cablewith CEE-plug, 5-pole
* inapplicable when supplied with PROFIBUS DP - interface (Option)

BASIC DESIGNS

PP PVDF

Pump body PP Pump body PVDF
Valves PP-FRP Valves PVDF-FRP
Valve balls PTFE Valve balls PTFE
Diaphragm PTFE-faced Diaphragm PTFE-faced
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C410.2-280e 16022724 & 16012455 & C410.2-280e 16023757 &
C410.2-570e 16022405 & 16022218 & C410.2-570e 16023758 &
C410.2-900e 16022638 & 16022685 & C410.2-900e 16023759 &
C410.2-1450e 16022276 & 16022498 & C410.2-1450e 16023760 &

PVC-U STAINLESS STEEL
Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571/1.4581
Valve balls PTFE Valve balls 1.4401
Diaphragm PTFE-faced Diaphragm PTFE-faced
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C410.2-280e 16022607 & 16023010 & C410.2-280e 16023761 &
C410.2-570e 16022852 & 16022273 & C410.2-570e 16023056 &
C410.2-900e 16022650 & 16022562 & C410.2-900e 16023662 &
C410.2-1450e 16022649 & 16022526 & C410.2-1450e 16023762 &

140 l basic version m available without extra charge s available with extra charge 5 not available & on request
