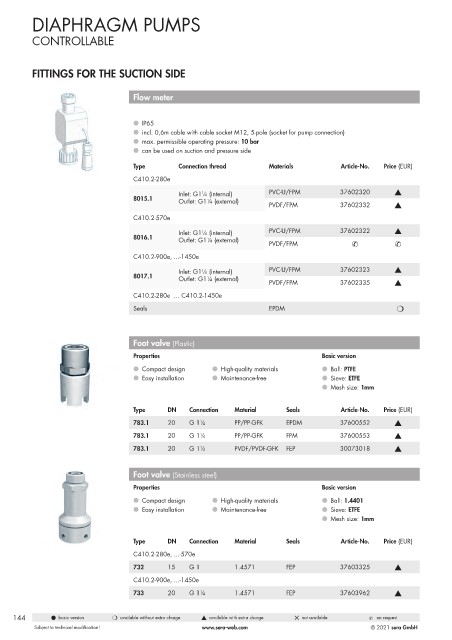

DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE SUCTION SIDE

Flow meter

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 10 bar
l can be used on suction and pressure side

Type Connection thread Materials Article-No. Price (EUR)
C410.2-280e
Inlet: G1¼ (internal) PVC-U/FPM 37602320 s
8015.1 Outlet: G1¼ (external) PVDF/FPM 37602332 s

C410.2-570e

Inlet: G1¼ (internal) PVC-U/FPM 37602322 s
8016.1 Outlet: G1¼ (external) PVDF/FPM & &

C410.2-900e, ...-1450e
Inlet: G1¼ (internal) PVC-U/FPM 37602323 s
8017.1 Outlet: G1¼ (external) PVDF/FPM 37602335 s

C410.2-280e ... C410.2-1450e
Seals EPDM m

Foot valve (Plastic)
Properties Basic version
l Compact design l High-quality materials l Ball: PTFE
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
783.1 20 G 1¼ PP/PP-GFK EPDM 37600552 s
783.1 20 G 1¼ PP/PP-GFK FPM 37600553 s
783.1 20 G 1¼ PVDF/PVDF-GFK FEP 30073018 s

Foot valve (Stainless steel)

Properties Basic version
l Compact design l High-quality materials l Ball: 1.4401
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
C410.2-280e, ...-570e
732 15 G 1 1.4571 FEP 37603325 s

C410.2-900e, ...-1450e
733 20 G 1¼ 1.4571 FEP 37603962 s

144 l basic version m available without extra charge s available with extra charge 5 not available & on request
