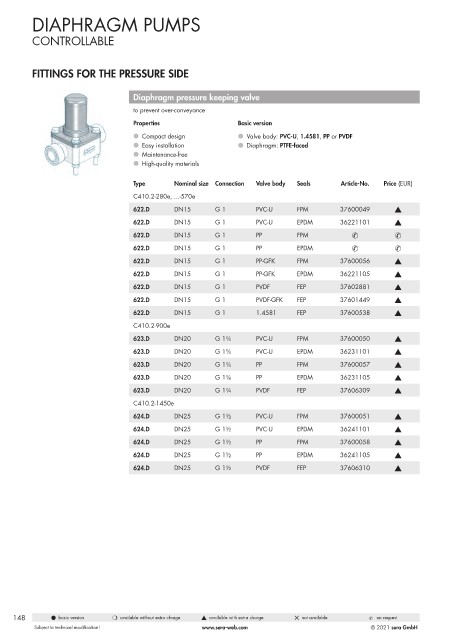

DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pressure keeping valve
to prevent over-conveyance

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
C410.2-280e, ...-570e
622.D DN15 G 1 PVC-U FPM 37600049 s
622.D DN15 G 1 PVC-U EPDM 36221101 s
622.D DN15 G 1 PP FPM & &
622.D DN15 G 1 PP EPDM & &
622.D DN15 G 1 PP-GFK FPM 37600056 s
622.D DN15 G 1 PP-GFK EPDM 36221105 s
622.D DN15 G 1 PVDF FEP 37602881 s

622.D DN15 G 1 PVDF-GFK FEP 37601449 s
622.D DN15 G 1 1.4581 FEP 37600538 s
C410.2-900e
623.D DN20 G 1¼ PVC-U FPM 37600050 s
623.D DN20 G 1¼ PVC-U EPDM 36231101 s
623.D DN20 G 1¼ PP FPM 37600057 s
623.D DN20 G 1¼ PP EPDM 36231105 s

623.D DN20 G 1¼ PVDF FEP 37606309 s
C410.2-1450e
624.D DN25 G 1½ PVC-U FPM 37600051 s
624.D DN25 G 1½ PVC-U EPDM 36241101 s
624.D DN25 G 1½ PP FPM 37600058 s
624.D DN25 G 1½ PP EPDM 36241105 s
624.D DN25 G 1½ PVDF FEP 37606310 s

148 l basic version m available without extra charge s available with extra charge 5 not available & on request
