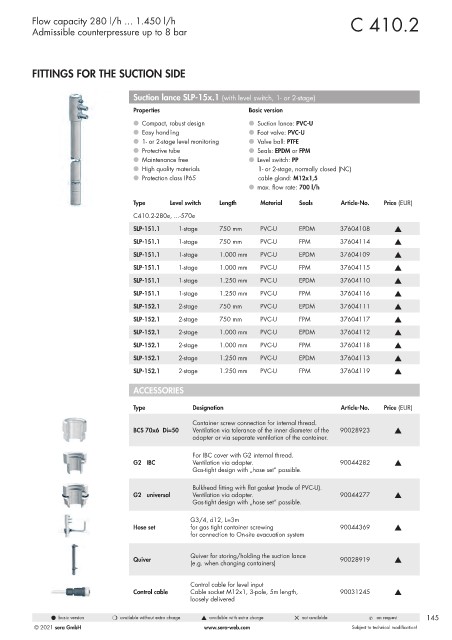

Page 145 - Pompy Dozujące 2021

Flow capacity 280 l/h ... 1.450 l/h C 410.2
Admissible counterpressure up to 8 bar

FITTINGS FOR THE SUCTION SIDE

Suction lance SLP-15x.1 (with level switch, 1- or 2-stage)
Properties Basic version

l Compact, robust design l Suction lance: PVC-U
l Easy handling l Foot valve: PVC-U
l 1- or 2-stage level monitoring l Valve ball: PTFE
l Protective tube l Seals: EPDM or FPM
l Maintenance free l Level switch: PP
l High quality materials 1- or 2-stage, normally closed (NC)
l Protection class IP65 cable gland: M12x1,5
l max. flow rate: 700 l/h

Type Level switch Length Material Seals Article-No. Price (EUR)
C410.2-280e, ...-570e
SLP-151.1 1-stage 750 mm PVC-U EPDM 37604108 s
SLP-151.1 1-stage 750 mm PVC-U FPM 37604114 s
SLP-151.1 1-stage 1.000 mm PVC-U EPDM 37604109 s
SLP-151.1 1-stage 1.000 mm PVC-U FPM 37604115 s
SLP-151.1 1-stage 1.250 mm PVC-U EPDM 37604110 s

SLP-151.1 1-stage 1.250 mm PVC-U FPM 37604116 s
SLP-152.1 2-stage 750 mm PVC-U EPDM 37604111 s
SLP-152.1 2-stage 750 mm PVC-U FPM 37604117 s
SLP-152.1 2-stage 1.000 mm PVC-U EPDM 37604112 s
SLP-152.1 2-stage 1.000 mm PVC-U FPM 37604118 s
SLP-152.1 2-stage 1.250 mm PVC-U EPDM 37604113 s
SLP-152.1 2-stage 1.250 mm PVC-U FPM 37604119 s

ACCESSORIES

Type Designation Article-No. Price (EUR)

Container screw connection for internal thread.
BCS 70x6 Di=50 Ventilation via tolerance of the inner diameter of the 90028923 s
adapter or via separate ventilation of the container.

For IBC cover with G2 internal thread.
G2 IBC Ventilation via adapter. 90044282 s
Gas-tight design with „hose set“ possible.

Bulkhead fitting with flat gasket (made of PVC-U).
G2 universal Ventilation via adapter. 90044277 s
Gas-tight design with „hose set“ possible.

G3/4, d12, L=3m
Hose set for gas tight container screwing 90044369 s
for connection to On-site evacuation system

Quiver for storing/holding the suction lance
Quiver 90028919 s
(e.g. when changing containers)
Control cable for level input
Control cable Cable socket M12x1, 3-pole, 5m length, 90031245 s
loosely delivered

l basic version m available without extra charge s available with extra charge 5 not available & on request 145
