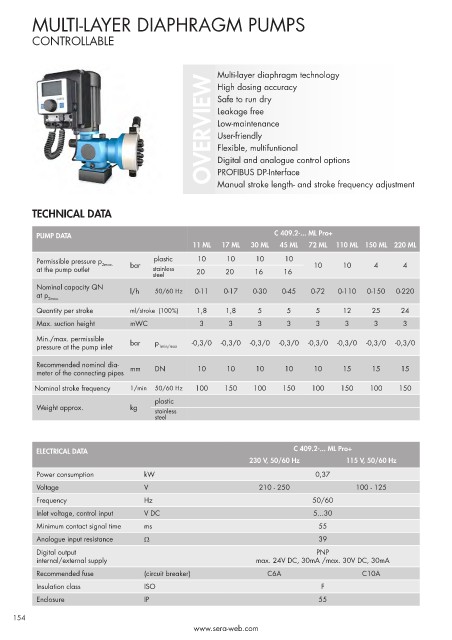

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

Multi-layer diaphragm technology
OVERVIEW Leakage free
High dosing accuracy
Safe to run dry

Low-maintenance
User-friendly
Flexible, multifuntional
Digital and analogue control options

Manual stroke length- and stroke frequency adjustment

TECHNICAL DATA PROFIBUS DP-Interface

PUMP DATA C 409.2-... ML Pro+
11 ML 17 ML 30 ML 45 ML 72 ML 110 ML 150 ML 220 ML
Permissible pressure p 2max. bar plastic 10 10 10 10 10 10 4 4
at the pump outlet stainless 20 20 16 16
steel
Nominal capacity QN l/h 50/60 Hz 0-11 0-17 0-30 0-45 0-72 0-110 0-150 0-220
at p 2max.
Quantity per stroke ml/stroke (100%) 1,8 1,8 5 5 5 12 25 24
Max. suction height mWC 3 3 3 3 3 3 3 3

Min./max. permissible bar p -0,3/0 -0,3/0 -0,3/0 -0,3/0 -0,3/0 -0,3/0 -0,3/0 -0,3/0
pressure at the pump inlet 1min/max

Recommended nominal dia- mm DN 10 10 10 10 10 15 15 15
meter of the connecting pipes

Nominal stroke frequency 1/min 50/60 Hz 100 150 100 150 100 150 100 150
plastic
Weight approx. kg
stainless
steel

ELECTRICAL DATA C 409.2-... ML Pro+
230 V, 50/60 Hz 115 V, 50/60 Hz
Power consumption kW 0,37
Voltage V 210 - 250 100 - 125

Frequency Hz 50/60
Inlet voltage, control input V DC 5...30
Minimum contact signal time ms 55
Analogue input resistance Ω 39
Digital output PNP
internal/external supply max. 24V DC, 30mA /max. 30V DC, 30mA

Recommended fuse (circuit breaker) C6A C10A
Insulation class ISO F
Enclosure IP 55

154
