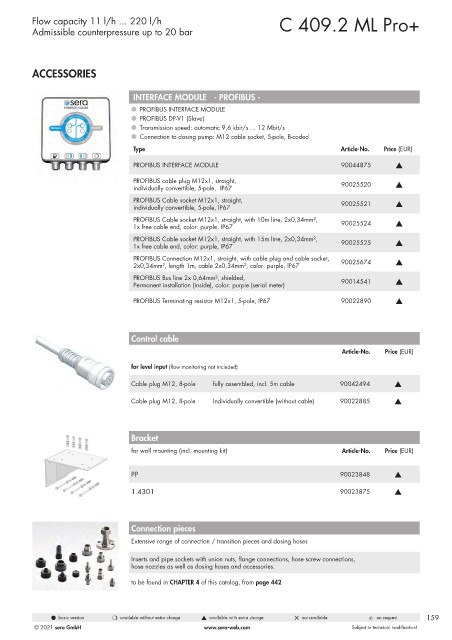

Page 159 - Pompy Dozujące 2021

Flow capacity 11 l/h ... 220 l/h C 409.2 ML Pro+
Admissible counterpressure up to 20 bar

ACCESSORIES

INTERFACE MODULE - PROFIBUS -
l PROFIBUS INTERFACE MODULE
l PROFIBUS DP-V1 (Slave)
l Transmission speed: automatic 9,6 kbit/s ... 12 Mbit/s
l Connection to dosing pump: M12 cable socket, 5-pole, B-coded
Type Article-No. Price (EUR)
PROFIBUS INTERFACE MODULE 90044875 s

PROFIBUS cable plug M12x1, straight, 90025520
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight,
individually convertible, 5-pole, IP67 90025521 s
PROFIBUS Cable socket M12x1, straight, with 10m line, 2x0,34mm²,
1x free cable end, color: purple, IP67 90025524 s
PROFIBUS Cable socket M12x1, straight, with 15m line, 2x0,34mm²,
1x free cable end, color: purple, IP67 90025525 s
PROFIBUS Connection M12x1, straight, with cable plug and cable socket, 90025674
2x0,34mm², length 1m, cable 2x0,34mm², color: purple, IP67 s
PROFIBUS Bus line 2x 0,64mm², shielded,
Permanent installation (inside), color: purple (serial meter) 90014541 s

PROFIBUS Terminating resistor M12x1, 5-pole, IP67 90022890 s

Control cable
Article-No. Price (EUR)

for level input (flow monitoring not included)
Cable plug M12, 8-pole fully assembled, incl. 5m cable 90042494 s

Cable plug M12, 8-pole Individually convertible (without cable) 90022885 s

Bracket
for wall mounting (incl. mounting kit) Article-No. Price (EUR)

PP 90023848 s

1.4301 90023875 s

Connection pieces
Extensive range of connection / transition pieces and dosing hoses

Inserts and pipe sockets with union nuts, flange connections, hose screw connections,
hose nozzles as well as dosing hoses and accessories.

to be found in CHAPTER 4 of this catalog, from page 442

l basic version m available without extra charge s available with extra charge 5 not available & on request 159
