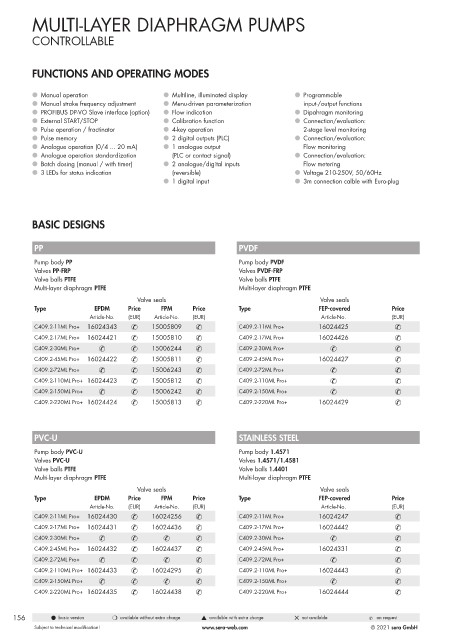

Page 156 - Pompy Dozujące 2021

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

● Manual operation ● Multiline, illuminated display ● Programmable
● Manual stroke frequency adjustment ● Menu-driven parameterization input-/output functions
● PROFIBUS DP-VO Slave interface (option) ● Flow indication ● Dipahragm monitoring
● External START/STOP ● Calibration function ● Connection/evaluation:
● Pulse operation / fractinator ● 4-key operation 2-stage level monitoring
● Pulse memory ● 2 digital outputs (PLC) ● Connection/evaluation:
● Analogue operation (0/4 ... 20 mA) ● 1 analogue output Flow monitoring
● Analogue operation standardization (PLC or contact signal) ● Connection/evaluation:
● Batch dosing (manual / with timer) ● 2 analogue/digital inputs Flow metering
● 3 LEDs for status indication (reversible) ● Voltage 210-250V, 50/60Hz
● 1 digital input ● 3m connection calble with Euro-plug

BASIC DESIGNS

PP PVDF
Pump body PP Pump body PVDF
Valves PP-FRP Valves PVDF-FRP
Valve balls PTFE Valve balls PTFE
Multi-layer diaphragm PTFE Multi-layer diaphragm PTFE
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-11ML Pro+ 16024343 & 15005809 & C409.2-11ML Pro+ 16024425 &
C409.2-17ML Pro+ 16024421 & 15005810 & C409.2-17ML Pro+ 16024426 &
C409.2-30ML Pro+ & & 15006244 & C409.2-30ML Pro+ & &
C409.2-45ML Pro+ 16024422 & 15005811 & C409.2-45ML Pro+ 16024427 &
C409.2-72ML Pro+ & & 15006243 & C409.2-72ML Pro+ & &
C409.2-110ML Pro+ 16024423 & 15005812 & C409.2-110ML Pro+ & &
C409.2-150ML Pro+ & & 15006242 & C409.2-150ML Pro+ & &
C409.2-220ML Pro+ 16024424 & 15005813 & C409.2-220ML Pro+ 16024429 &

PVC-U STAINLESS STEEL

Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571/1.4581
Valve balls PTFE Valve balls 1.4401
Multi-layer diaphragm PTFE Multi-layer diaphragm PTFE
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C409.2-11ML Pro+ 16024430 & 16024256 & C409.2-11ML Pro+ 16024247 &
C409.2-17ML Pro+ 16024431 & 16024436 & C409.2-17ML Pro+ 16024442 &
C409.2-30ML Pro+ & & & & C409.2-30ML Pro+ & &
C409.2-45ML Pro+ 16024432 & 16024437 & C409.2-45ML Pro+ 16024331 &
C409.2-72ML Pro+ & & & & C409.2-72ML Pro+ & &
C409.2-110ML Pro+ 16024433 & 16024295 & C409.2-110ML Pro+ 16024443 &
C409.2-150ML Pro+ & & & & C409.2-150ML Pro+ & &
C409.2-220ML Pro+ 16024435 & 16024438 & C409.2-220ML Pro+ 16024444 &

156 l basic version m available without extra charge s available with extra charge 5 not available & on request
