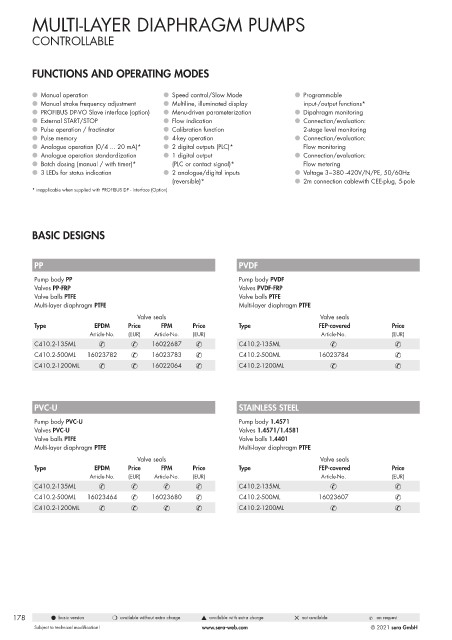

Page 178 - Pompy Dozujące 2021

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

l Manual operation l Speed control/Slow Mode l Programmable
l Manual stroke frequency adjustment l Multiline, illuminated display input-/output functions*
l PROFIBUS DP-VO Slave interface (option) l Menu-driven parameterization l Dipahragm monitoring
l External START/STOP l Flow indication l Connection/evaluation:
l Pulse operation / fractinator l Calibration function 2-stage level monitoring
l Pulse memory l 4-key operation l Connection/evaluation:
l Analogue operation (0/4 ... 20 mA)* l 2 digital outputs (PLC)* Flow monitoring
l Analogue operation standardization l 1 digital output l Connection/evaluation:
l Batch dosing (manual / with timer)* (PLC or contact signal)* Flow metering
l 3 LEDs for status indication l 2 analogue/digital inputs l Voltage 3~380 -420V/N/PE, 50/60Hz
(reversible)* l 2m connection cablewith CEE-plug, 5-pole
* inapplicable when supplied with PROFIBUS DP - interface (Option)

BASIC DESIGNS

PP PVDF
Pump body PP Pump body PVDF
Valves PP-FRP Valves PVDF-FRP
Valve balls PTFE Valve balls PTFE
Multi-layer diaphragm PTFE Multi-layer diaphragm PTFE
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C410.2-135ML & & 16022687 & C410.2-135ML & &
C410.2-500ML 16023782 & 16023783 & C410.2-500ML 16023784 &
C410.2-1200ML & & 16022064 & C410.2-1200ML & &

PVC-U STAINLESS STEEL

Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571/1.4581
Valve balls PTFE Valve balls 1.4401
Multi-layer diaphragm PTFE Multi-layer diaphragm PTFE
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C410.2-135ML & & & & C410.2-135ML & &
C410.2-500ML 16023464 & 16023680 & C410.2-500ML 16023607 &
C410.2-1200ML & & & & C410.2-1200ML & &

178 l basic version m available without extra charge s available with extra charge 5 not available & on request
