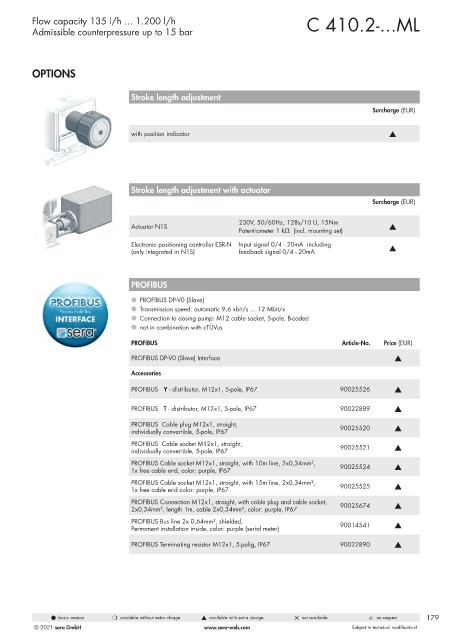

Page 179 - Pompy Dozujące 2021

Flow capacity 135 l/h ... 1.200 l/h C 410.2-...ML
Admissible counterpressure up to 15 bar

OPTIONS

Stroke length adjustment
Surcharge (EUR)

with position indicator s

Stroke length adjustment with actuator
Surcharge (EUR)

230V, 50/60Hz, 128s/10 U, 15Nm
Actuator N1S s
Potentiometer 1 kΩ (incl. mounting set)
Electronic positioning controller ESR-N Input signal 0/4 - 20mA including s
(only integrated in N1S) feedback signal 0/4 - 20mA

PROFIBUS

l PROFIBUS DP-V0 (Slave)
l Transmission speed: automatic 9,6 kbit/s ... 12 Mbit/s
l Connection to dosing pump: M12 cable socket, 5-pole, B-coded
l not in combination with cTÜVus

PROFIBUS Article-No. Price (EUR)
PROFIBUS DP-V0 (Slave) Interface s

Accessories
PROFIBUS Y - distributor, M12x1, 5-pole, IP67 90025526 s

PROFIBUS T - distributor, M12x1, 5-pole, IP67 90022889 s

PROFIBUS Cable plug M12x1, straight, 90025520
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, 90025521
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, with 10m line, 2x0,34mm², 90025524
1x free cable end, color: purple, IP67 s
PROFIBUS Cable socket M12x1, straight, with 15m line, 2x0,34mm²,
1x free cable end color: purple, IP67 90025525 s
PROFIBUS Connection M12x1, straight, with cable plug and cable socket, 90025674
2x0,34mm², length 1m, cable 2x0,34mm², color: purple, IP67 s
PROFIBUS Bus line 2x 0,64mm², shielded, 90014541
Permanent installation inside, color: purple (serial meter) s

PROFIBUS Terminating resistor M12x1, 5-polig, IP67 90022890 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 179
