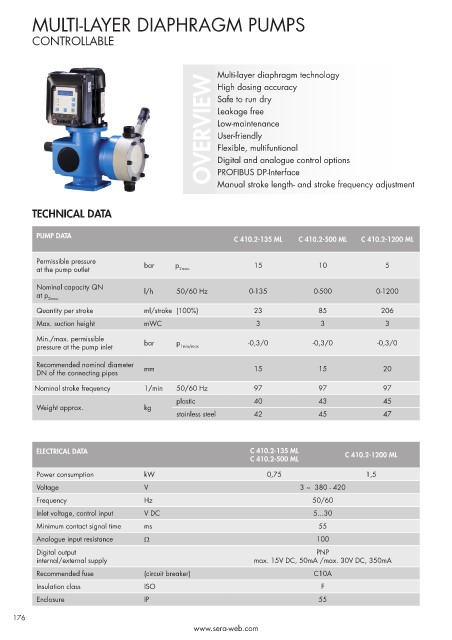

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

Multi-layer diaphragm technology
OVERVIEW Leakage free
High dosing accuracy
Safe to run dry

Low-maintenance
User-friendly
Flexible, multifuntional
Digital and analogue control options

Manual stroke length- and stroke frequency adjustment

TECHNICAL DATA PROFIBUS DP-Interface

PUMP DATA
C 410.2-135 ML C 410.2-500 ML C 410.2-1200 ML

Permissible pressure bar p 15 10 5
at the pump outlet 2max.
Nominal capacity QN l/h 50/60 Hz 0-135 0-500 0-1200
at p 2max.
Quantity per stroke ml/stroke (100%) 23 85 206
Max. suction height mWC 3 3 3

Min./max. permissible bar p -0,3/0 -0,3/0 -0,3/0
pressure at the pump inlet 1min/max

Recommended nominal diameter mm 15 15 20
DN of the connecting pipes

Nominal stroke frequency 1/min 50/60 Hz 97 97 97
plastic 40 43 45
Weight approx. kg
stainless steel 42 45 47

ELECTRICAL DATA C 410.2-135 ML C 410.2-1200 ML
C 410.2-500 ML
Power consumption kW 0,75 1,5
Voltage V 3 ~ 380 - 420

Frequency Hz 50/60
Inlet voltage, control input V DC 5...30
Minimum contact signal time ms 55
Analogue input resistance Ω 100
Digital output PNP
internal/external supply max. 15V DC, 50mA /max. 30V DC, 350mA

Recommended fuse (circuit breaker) C10A
Insulation class ISO F
Enclosure IP 55

176
