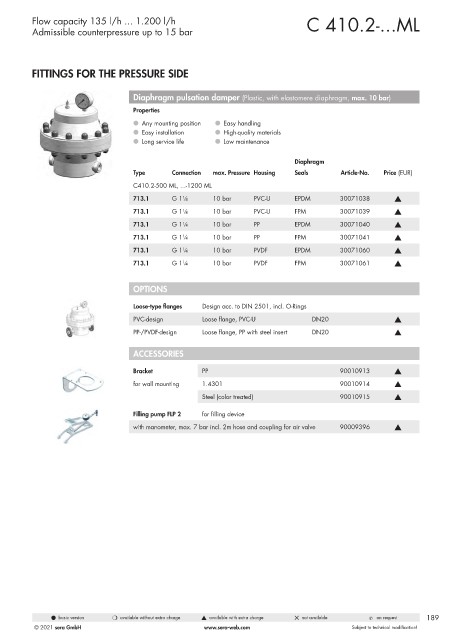

Flow capacity 135 l/h ... 1.200 l/h C 410.2-...ML
Admissible counterpressure up to 15 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Plastic, with elastomere diaphragm, max. 10 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Diaphragm
Type Connection max. Pressure Housing Seals Article-No. Price (EUR)
C410.2-500 ML, ...-1200 ML
713.1 G 1¼ 10 bar PVC-U EPDM 30071038 s
713.1 G 1¼ 10 bar PVC-U FPM 30071039 s
713.1 G 1¼ 10 bar PP EPDM 30071040 s
713.1 G 1¼ 10 bar PP FPM 30071041 s
713.1 G 1¼ 10 bar PVDF EPDM 30071060 s

713.1 G 1¼ 10 bar PVDF FPM 30071061 s

OPTIONS

Loose-type flanges Design acc. to DIN 2501, incl. O-Rings
PVC-design Loose flange, PVC-U DN20 s
PP-/PVDF-design Loose flange, PP with steel insert DN20 s

ACCESSORIES

Bracket PP 90010913 s
for wall mounting 1.4301 90010914 s
Steel (color treated) 90010915 s

Filling pump FLP 2 for filling device

with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 189
