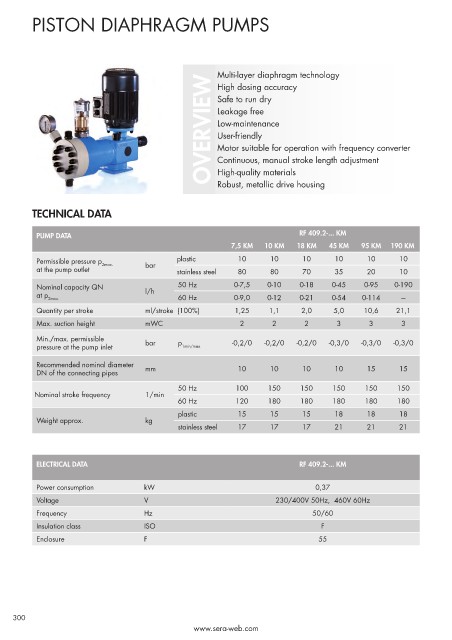

PISTON DIAPHRAGM PUMPS

Multi-layer diaphragm technology
OVERVIEW Leakage free
High dosing accuracy
Safe to run dry

Low-maintenance
User-friendly
Motor suitable for operation with frequency converter
Continuous, manual stroke length adjustment

Robust, metallic drive housing

TECHNICAL DATA High-quality materials

PUMP DATA RF 409.2-... KM
7,5 KM 10 KM 18 KM 45 KM 95 KM 190 KM
Permissible pressure p 2max. bar plastic 10 10 10 10 10 10
at the pump outlet stainless steel 80 80 70 35 20 10
Nominal capacity QN l/h 50 Hz 0-7,5 0-10 0-18 0-45 0-95 0-190
at p 2max. 60 Hz 0-9,0 0-12 0-21 0-54 0-114 ---
Quantity per stroke ml/stroke (100%) 1,25 1,1 2,0 5,0 10,6 21,1
Max. suction height mWC 2 2 2 3 3 3

Min./max. permissible bar p -0,2/0 -0,2/0 -0,2/0 -0,3/0 -0,3/0 -0,3/0
pressure at the pump inlet 1min/max

Recommended nominal diameter mm 10 10 10 10 15 15
DN of the connecting pipes

50 Hz 100 150 150 150 150 150
Nominal stroke frequency 1/min
60 Hz 120 180 180 180 180 180
plastic 15 15 15 18 18 18
Weight approx. kg
stainless steel 17 17 17 21 21 21

ELECTRICAL DATA RF 409.2-... KM

Power consumption kW 0,37

Voltage V 230/400V 50Hz, 460V 60Hz
Frequency Hz 50/60
Insulation class ISO F
Enclosure F 55
