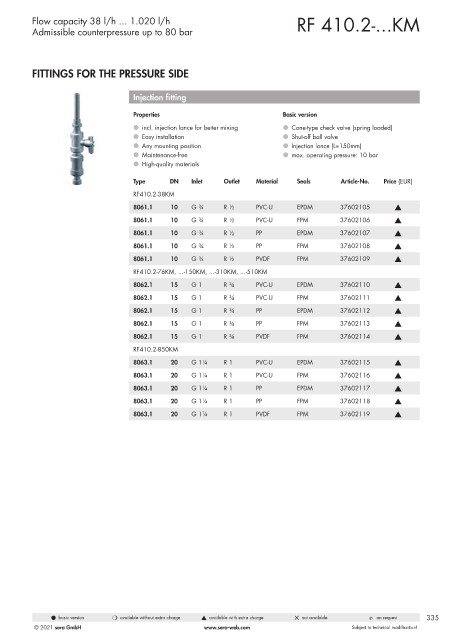

Page 335 - Pompy Dozujące 2021

Flow capacity 38 l/h ... 1.020 l/h RF 410.2-...KM
Admissible counterpressure up to 80 bar

FITTINGS FOR THE PRESSURE SIDE

Injection fitting

Properties Basic version
l incl. injection lance for better mixing l Cone-type check valve (spring loaded)
l Easy installation l Shut-off ball valve
l Any mounting position l Injection lance (L=150mm)
l Maintenance-free l max. operating pressure: 10 bar
l High-quality materials

Type DN Inlet Outlet Material Seals Article-No. Price (EUR)
RF410.2-38KM
8061.1 10 G ¾ R ½ PVC-U EPDM 37602105 s

8061.1 10 G ¾ R ½ PVC-U FPM 37602106 s
8061.1 10 G ¾ R ½ PP EPDM 37602107 s
8061.1 10 G ¾ R ½ PP FPM 37602108 s
8061.1 10 G ¾ R ½ PVDF FPM 37602109 s
RF410.2-76KM, ...-150KM, ...-310KM, ...-510KM
8062.1 15 G 1 R ¾ PVC-U EPDM 37602110 s
8062.1 15 G 1 R ¾ PVC-U FPM 37602111 s
8062.1 15 G 1 R ¾ PP EPDM 37602112 s
8062.1 15 G 1 R ¾ PP FPM 37602113 s

8062.1 15 G 1 R ¾ PVDF FPM 37602114 s
RF410.2-850KM
8063.1 20 G 1¼ R 1 PVC-U EPDM 37602115 s
8063.1 20 G 1¼ R 1 PVC-U FPM 37602116 s
8063.1 20 G 1¼ R 1 PP EPDM 37602117 s
8063.1 20 G 1¼ R 1 PP FPM 37602118 s
8063.1 20 G 1¼ R 1 PVDF FPM 37602119 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 335
