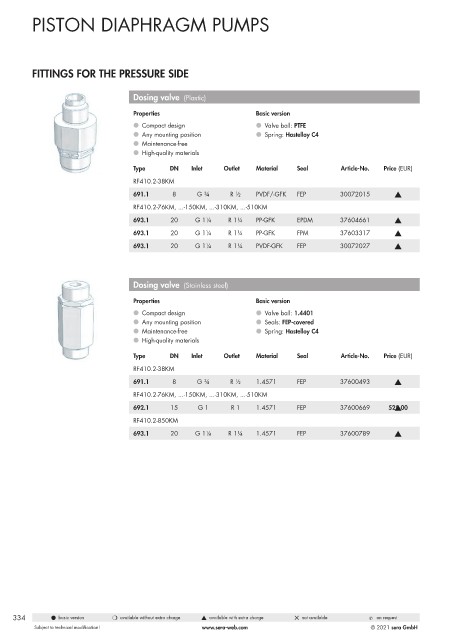

Page 334 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

FITTINGS FOR THE PRESSURE SIDE

Dosing valve (Plastic)

Properties Basic version
l Compact design l Valve ball: PTFE
l Any mounting position l Spring: Hastelloy C4
l Maintenance-free
l High-quality materials

Type DN Inlet Outlet Material Seal Article-No. Price (EUR)
RF410.2-38KM
691.1 8 G ¾ R ½ PVDF/-GFK FEP 30072015 s
RF410.2-76KM, ...-150KM, ...-310KM, ...-510KM

693.1 20 G 1¼ R 1¼ PP-GFK EPDM 37604661 s
693.1 20 G 1¼ R 1¼ PP-GFK FPM 37603317 s
693.1 20 G 1¼ R 1¼ PVDF-GFK FEP 30072027 s

Dosing valve (Stainless steel)

Properties Basic version
l Compact design l Valve ball: 1.4401
l Any mounting position l Seals: FEP-covered
l Maintenance-free l Spring: Hastelloy C4
l High-quality materials

Type DN Inlet Outlet Material Seal Article-No. Price (EUR)
RF410.2-38KM
691.1 8 G ¾ R ½ 1.4571 FEP 37600493 s
RF410.2-76KM, ...-150KM, ...-310KM, ...-510KM
R 1
G 1
15
1.4571
37600669
FEP
s
692.1
692.1 15 G 1 R 1 1.4571 FEP 37600669 525,00
RF410.2-850KM
693.1 20 G 1¼ R 1¼ 1.4571 FEP 37600789 s

334 l basic version m available without extra charge s available with extra charge 5 not available & on request
