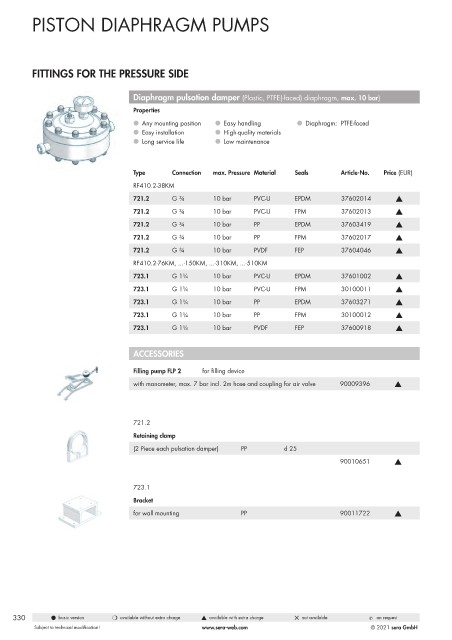

Page 330 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Plastic, PTFE(-faced) diaphragm, max. 10 bar)
Properties

l Any mounting position l Easy handling l Diaphragm: PTFE-faced
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max. Pressure Material Seals Article-No. Price (EUR)
RF410.2-38KM
721.2 G ¾ 10 bar PVC-U EPDM 37602014 s
721.2 G ¾ 10 bar PVC-U FPM 37602013 s
721.2 G ¾ 10 bar PP EPDM 37603419 s
721.2 G ¾ 10 bar PP FPM 37602017 s
721.2 G ¾ 10 bar PVDF FEP 37604046 s

RF410.2-76KM, ...-150KM, ...-310KM, ...-510KM
723.1 G 1¼ 10 bar PVC-U EPDM 37601002 s
723.1 G 1¼ 10 bar PVC-U FPM 30100011 s
723.1 G 1¼ 10 bar PP EPDM 37603271 s
723.1 G 1¼ 10 bar PP FPM 30100012 s
723.1 G 1¼ 10 bar PVDF FEP 37600918 s

ACCESSORIES

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

721.2
Retaining clamp
(2 Piece each pulsation damper) PP d 25
90010651 s

723.1

Bracket
for wall mounting PP 90011722 s

330 l basic version m available without extra charge s available with extra charge 5 not available & on request
