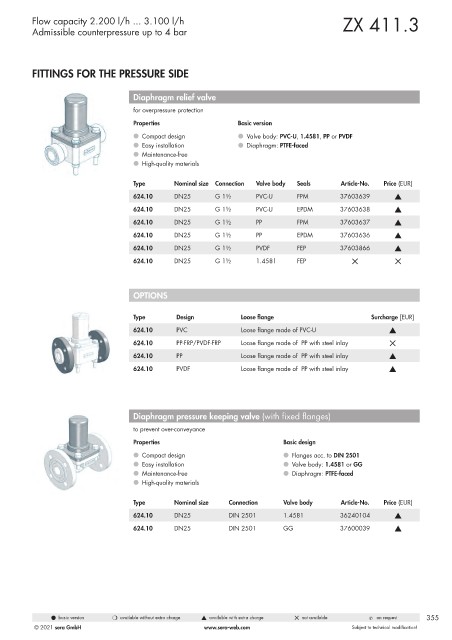

Page 355 - Pompy Dozujące 2021

Flow capacity 2.200 l/h ... 3.100 l/h ZX 411.3
Admissible counterpressure up to 4 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm relief valve
for overpressure protection

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
624.10 DN25 G 1½ PVC-U FPM 37603639 s
624.10 DN25 G 1½ PVC-U EPDM 37603638 s
624.10 DN25 G 1½ PP FPM 37603637 s
624.10 DN25 G 1½ PP EPDM 37603636 s
624.10 DN25 G 1½ PVDF FEP 37603866 s
624.10 DN25 G 1½ 1.4581 FEP 5 5

OPTIONS

Type Design Loose flange Surcharge [EUR]
624.10 PVC Loose flange made of PVC-U s
624.10 PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
624.10 PP Loose flange made of PP with steel inlay s
624.10 PVDF Loose flange made of PP with steel inlay s

Diaphragm pressure keeping valve (with fixed flanges)
to prevent over-conveyance
Properties Basic design
l Compact design l Flanges acc. to DIN 2501
l Easy installation l Valve body: 1.4581 or GG
l Maintenance-free l Diaphragm: PTFE-faced
l High-quality materials

Type Nominal size Connection Valve body Article-No. Price (EUR)
624.10 DN25 DIN 2501 1.4581 36240104 s
624.10 DN25 DIN 2501 GG 37600039 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 355
