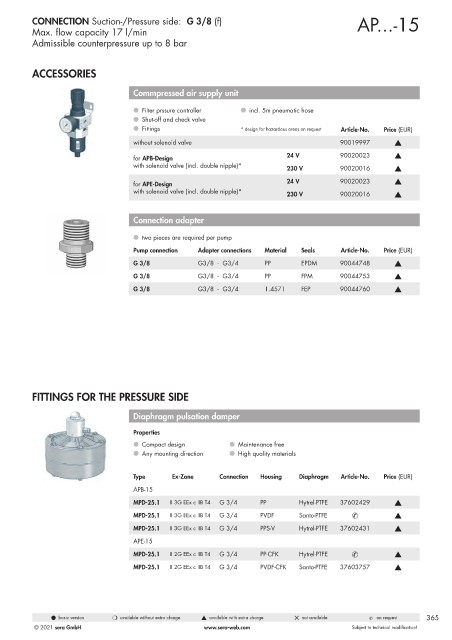

Page 365 - Pompy Dozujące 2021

CONNECTION Suction-/Pressure side: G 3/8 (f) AP...-15
Max. flow capacity 17 l/min
Admissible counterpressure up to 8 bar

ACCESSORIES

Commpressed air supply unit

l Filter prssure controller l incl. 5m pneumatic hose
l Shut-off and check valve
l Fittings * design for hazardous areas on request Article-No. Price (EUR)
without solenoid valve 90019997 s
for APB-Design 24 V 90020023 s
with solenoid valve (incl. double nipple)* 230 V 90020016 s

for APE-Design 24 V 90020023 s
with solenoid valve (incl. double nipple)* 230 V 90020016 s

Connection adapter

l two pieces are required per pump
Pump connection Adapter connections Material Seals Article-No. Price (EUR)

G 3/8 G3/8 - G3/4 PP EPDM 90044748 s
G 3/8 G3/8 - G3/4 PP FPM 90044753 s
G 3/8 G3/8 - G3/4 1.4571 FEP 90044760 s

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper
Properties
l Compact design l Maintenance free
l Any mounting direction l High quality materials

Type Ex-Zone Connection Housing Diaphragm Article-No. Price (EUR)
APB-15
MPD-25.1 II 3G EEx c IIB T4 G 3/4 PP Hytrel-PTFE 37602429 s
MPD-25.1 II 3G EEx c IIB T4 G 3/4 PVDF Santo-PTFE & s
MPD-25.1 II 3G EEx c IIB T4 G 3/4 PPS-V Hytrel-PTFE 37602431 s
APE-15
MPD-25.1 II 2G EEx c IIB T4 G 3/4 PP-CFK Hytrel-PTFE & s
MPD-25.1 II 2G EEx c IIB T4 G 3/4 PVDF-CFK Santo-PTFE 37603757 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 365
Subject to technical modification! www.sera-web.com © 2021 sera GmbH © 2021 sera GmbH www.sera-web.com Subject to technical modification!
