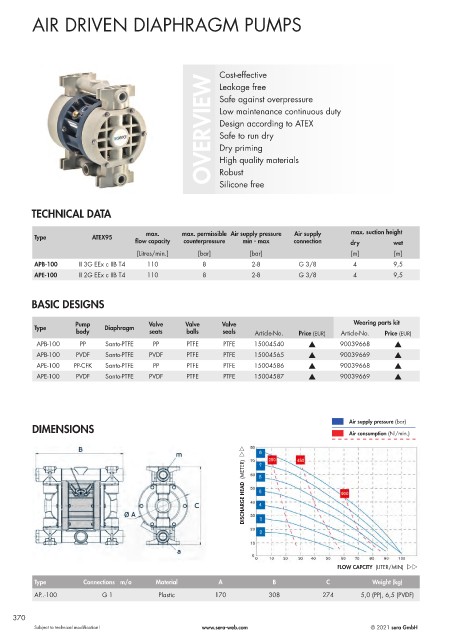

Page 370 - Pompy Dozujące 2021

AIR DRIVEN DIAPHRAGM PUMPS

Cost-effective
OVERVIEW Low maintenance continuous duty
Leakage free
Safe against overpressure

Design according to ATEX
Safe to run dry
Dry priming
High quality materials

Silicone free

TECHNICAL DATA Robust

max. max. permissible Air supply pressure Air supply max. suction height
Type ATEX95
flow capacity counterpressure min - max connection dry wet
[Litres/min.] [bar] [bar] [m] [m]
APB-100 II 3G EEx c IIB T4 110 8 2-8 G 3/8 4 9,5
APE-100 II 2G EEx c IIB T4 110 8 2-8 G 3/8 4 9,5

BASIC DESIGNS

Pump Valve Valve Valve Wearing parts kit
Type Diaphragm
body seats balls seals Article-No. Price (EUR) Article-No. Price (EUR)
APB-100 PP Santo-PTFE PP PTFE PTFE 15004540 s 90039668 s
APB-100 PVDF Santo-PTFE PVDF PTFE PTFE 15004565 s 90039669 s
APE-100 PP-CFK Santo-PTFE PP PTFE PTFE 15004586 s 90039668 s
APE-100 PVDF Santo-PTFE PVDF PTFE PTFE 15004587 s 90039669 s

Air supply pressure (bar)
DIMENSIONS Air consumption (Nl/min.)

DISCHARGE HEAD (METER) ww

FLOW CAPCITY (LITER/MIN) ww
Type Connections m/a Material A B C Weight (kg)
AP..-100 G 1 Plastic 170 308 274 5,0 (PP), 6,5 (PVDF)

370
