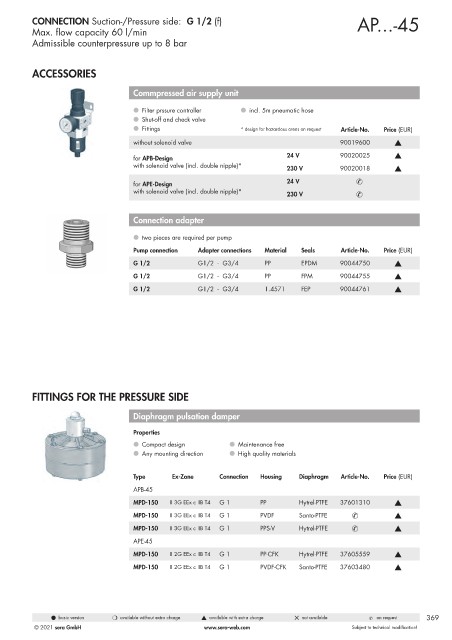

Page 369 - Pompy Dozujące 2021

CONNECTION Suction-/Pressure side: G 1/2 (f) AP...-45
Max. flow capacity 60 l/min
Admissible counterpressure up to 8 bar

ACCESSORIES

Commpressed air supply unit

l Filter prssure controller l incl. 5m pneumatic hose
l Shut-off and check valve
l Fittings * design for hazardous areas on request Article-No. Price (EUR)
without solenoid valve 90019600 s
for APB-Design 24 V 90020025 s
with solenoid valve (incl. double nipple)* 230 V 90020018 s

for APE-Design 24 V &
with solenoid valve (incl. double nipple)* 230 V &

Connection adapter

l two pieces are required per pump
Pump connection Adapter connections Material Seals Article-No. Price (EUR)

G 1/2 G1/2 - G3/4 PP EPDM 90044750 s
G 1/2 G1/2 - G3/4 PP FPM 90044755 s
G 1/2 G1/2 - G3/4 1.4571 FEP 90044761 s

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper
Properties
l Compact design l Maintenance free
l Any mounting direction l High quality materials

Type Ex-Zone Connection Housing Diaphragm Article-No. Price (EUR)
APB-45
MPD-150 II 3G EEx c IIB T4 G 1 PP Hytrel-PTFE 37601310 s
MPD-150 II 3G EEx c IIB T4 G 1 PVDF Santo-PTFE & s
MPD-150 II 3G EEx c IIB T4 G 1 PPS-V Hytrel-PTFE & s
APE-45
MPD-150 II 2G EEx c IIB T4 G 1 PP-CFK Hytrel-PTFE 37605559 s
MPD-150 II 2G EEx c IIB T4 G 1 PVDF-CFK Santo-PTFE 37603480 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 369
