Page 40 - Pompy Dozujące 2021
P. 40

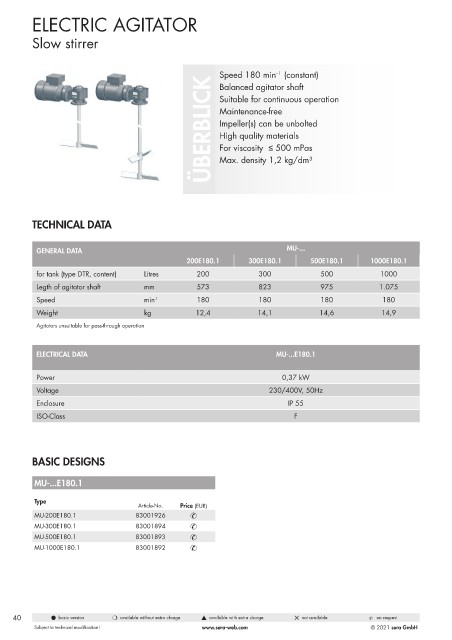

ELECTRIC AGITATOR
Slow stirrer
Speed 180 min (constant)
--1
ÜBERBLICK Maintenance-free
Balanced agitator shaft
Suitable for continuous operation
Impeller(s) can be unbolted
High quality materials
For viscosity ≤ 500 mPas
Max. density 1,2 kg/dm³
TECHNICAL DATA
GENERAL DATA MU-...
200E180.1 300E180.1 500E180.1 1000E180.1
for tank (type DTR, content) Litres 200 300 500 1000
Legth of agitator shaft mm 573 823 975 1.075
Speed min -1 180 180 180 180
Weight kg 12,4 14,1 14,6 14,9
Agitators unsuitable for pass-through operation
ELECTRICAL DATA MU-...E180.1
Power 0,37 kW
Voltage 230/400V, 50Hz
Enclosure IP 55
ISO-Class F
BASIC DESIGNS
MU-...E180.1
Type
Article-No. Price (EUR)
MU-200E180.1 83001926 &
MU-300E180.1 83001894 &
MU-500E180.1 83001893 &
MU-1000E180.1 83001892 &
40 l basic version m available without extra charge s available with extra charge 5 not available & on request
