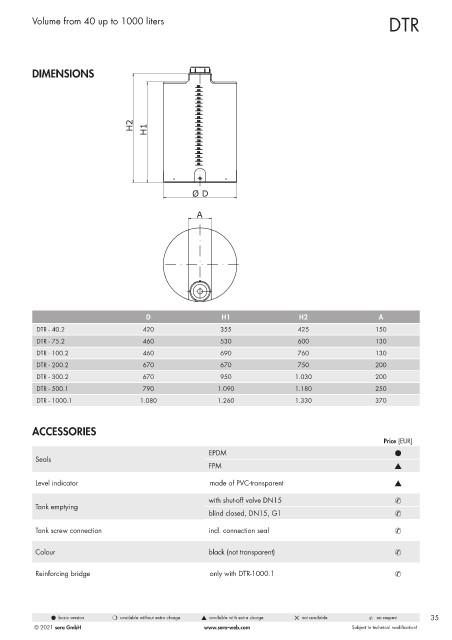

Volume from 40 up to 1000 liters DTR

DIMENSIONS

H2 H1

Ø D

A

D H1 H2 A

DTR - 40.2 420 355 425 150
DTR - 75.2 460 530 600 130
DTR - 100.2 460 690 760 130
DTR - 200.2 670 670 750 200
DTR - 300.2 670 950 1.030 200
DTR - 500.1 790 1.090 1.180 250
DTR - 1000.1 1.080 1.260 1.330 370

ACCESSORIES
Price [EUR]
EPDM l
Seals
FPM s

Level indicator made of PVC-transparent s

with shut-off valve DN15 &
Tank emptying
blind closed, DN15, G1 &
Tank screw connection incl. connection seal &

Colour black (not transparent) &

Reinforcing bridge only with DTR-1000.1 &

l basic version m available without extra charge s available with extra charge 5 not available & on request 35
