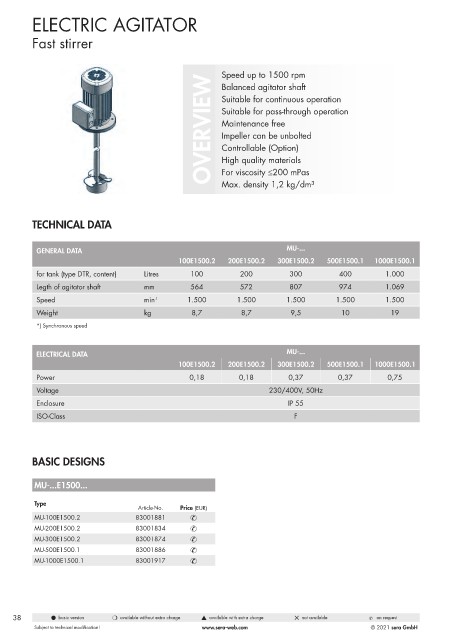

ELECTRIC AGITATOR
Fast stirrer
Speed up to 1500 rpm
OVERVIEW Suitable for pass-through operation
Balanced agitator shaft
Suitable for continuous operation
Maintenance free
Impeller can be unbolted
Controllable (Option)
High quality materials
For viscosity ≤200 mPas
TECHNICAL DATA Max. density 1,2 kg/dm³
GENERAL DATA MU-...
100E1500.2 200E1500.2 300E1500.2 500E1500.1 1000E1500.1
for tank (type DTR, content) Litres 100 200 300 400 1.000
Legth of agitator shaft mm 564 572 807 974 1.069
Speed min -1 1.500 1.500 1.500 1.500 1.500
Weight kg 8,7 8,7 9,5 10 19
*) Synchronous speed
ELECTRICAL DATA MU-...
100E1500.2 200E1500.2 300E1500.2 500E1500.1 1000E1500.1
Power 0,18 0,18 0,37 0,37 0,75
Voltage 230/400V, 50Hz
Enclosure IP 55
ISO-Class F
BASIC DESIGNS
MU-...E1500...
Type
Article-No. Price (EUR)
MU-100E1500.2 83001881 &
MU-200E1500.2 83001834 &
MU-300E1500.2 83001874 &
MU-500E1500.1 83001886 &
MU-1000E1500.1 83001917 &
38 l basic version m available without extra charge s available with extra charge 5 not available & on request
