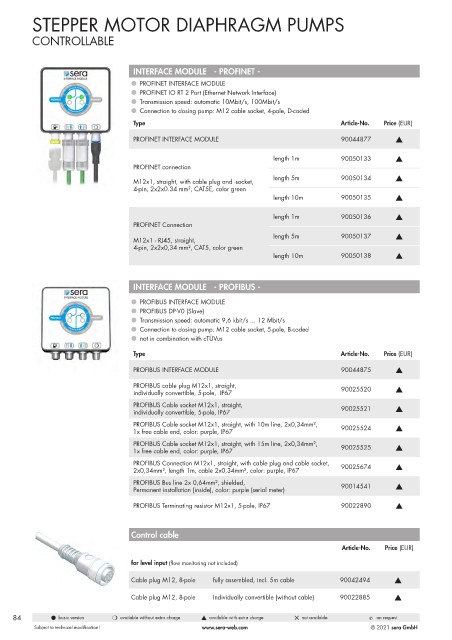

Page 84 - Pompy Dozujące 2021

STEPPER MOTOR DIAPHRAGM PUMPS

CONTROLLABLE

INTERFACE MODULE - PROFINET -
l PROFINET INTERFACE MODULE
l PROFINET IO RT 2 Port (Ethernet Network Interface)
l Transmission speed: automatic 10Mbit/s, 100Mbit/s
l Connection to dosing pump: M12 cable socket, 4-pole, D-coded
Type Article-No. Price (EUR)
PROFINET INTERFACE MODULE 90044877 s

length 1m 90050133 s
PROFINET connection
M12x1, straight, with cable plug and -socket, length 5m 90050134 s
4-pin, 2x2x0.34 mm², CAT5E, color green
length 10m 90050135 s

length 1m 90050136 s
PROFINET Connection
length 5m 90050137 s
M12x1 - RJ45, straight,
4-pin, 2x2x0,34 mm², CAT5, color green
length 10m 90050138 s

INTERFACE MODULE - PROFIBUS -

l PROFIBUS INTERFACE MODULE
l PROFIBUS DP-V0 (Slave)
l Transmission speed: automatic 9,6 kbit/s ... 12 Mbit/s
l Connection to dosing pump: M12 cable socket, 5-pole, B-coded
l not in combination with cTÜVus

Type Article-No. Price (EUR)
PROFIBUS INTERFACE MODULE 90044875 s

PROFIBUS cable plug M12x1, straight, 90025520
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, 90025521
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, with 10m line, 2x0,34mm², 90025524
1x free cable end, color: purple, IP67 s
PROFIBUS Cable socket M12x1, straight, with 15m line, 2x0,34mm²,
1x free cable end, color: purple, IP67 90025525 s
PROFIBUS Connection M12x1, straight, with cable plug and cable socket, 90025674
2x0,34mm², length 1m, cable 2x0,34mm², color: purple, IP67 s
PROFIBUS Bus line 2x 0,64mm², shielded, 90014541
Permanent installation (inside), color: purple (serial meter) s
PROFIBUS Terminating resistor M12x1, 5-pole, IP67 90022890 s

Control cable
Article-No. Price (EUR)

for level input (flow monitoring not included)

Cable plug M12, 8-pole fully assembled, incl. 5m cable 90042494 s

Cable plug M12, 8-pole Individually convertible (without cable) 90022885 s

84 l basic version m available without extra charge s available with extra charge 5 not available & on request
